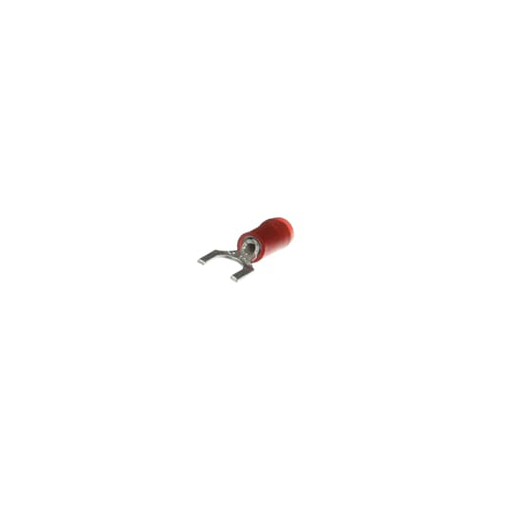

Image thumbnail 1
Image thumbnail 2
Image thumbnail 3

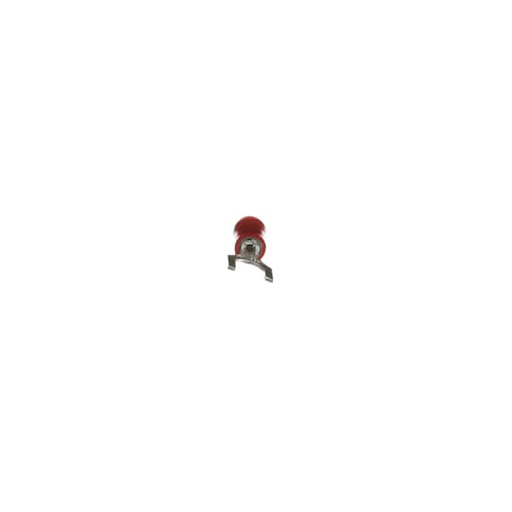

Image thumbnail 4

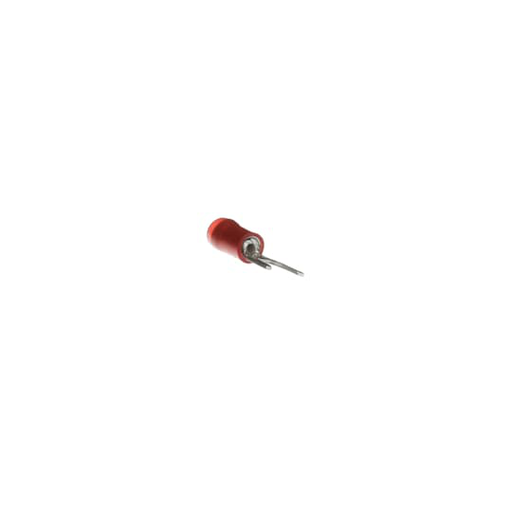

Image thumbnail 5
Image thumbnail 6
Email

Thomas & Betts RA1153 #10 Bolt Hole 22-16 AWG Wire Range Red Insulated Nylon Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RA1153 | Codale Part # 3267963
$82.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
186 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Nylon Insulated Fork Terminal, Length 0.83 Inch, Width 0.25 Inch, Max Insulation 0.136, Bolt Hole #10, Wire Range #22-16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210817644
Color
Red
Finish
Electro Tin Plated
Product UPC
78621081764
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
