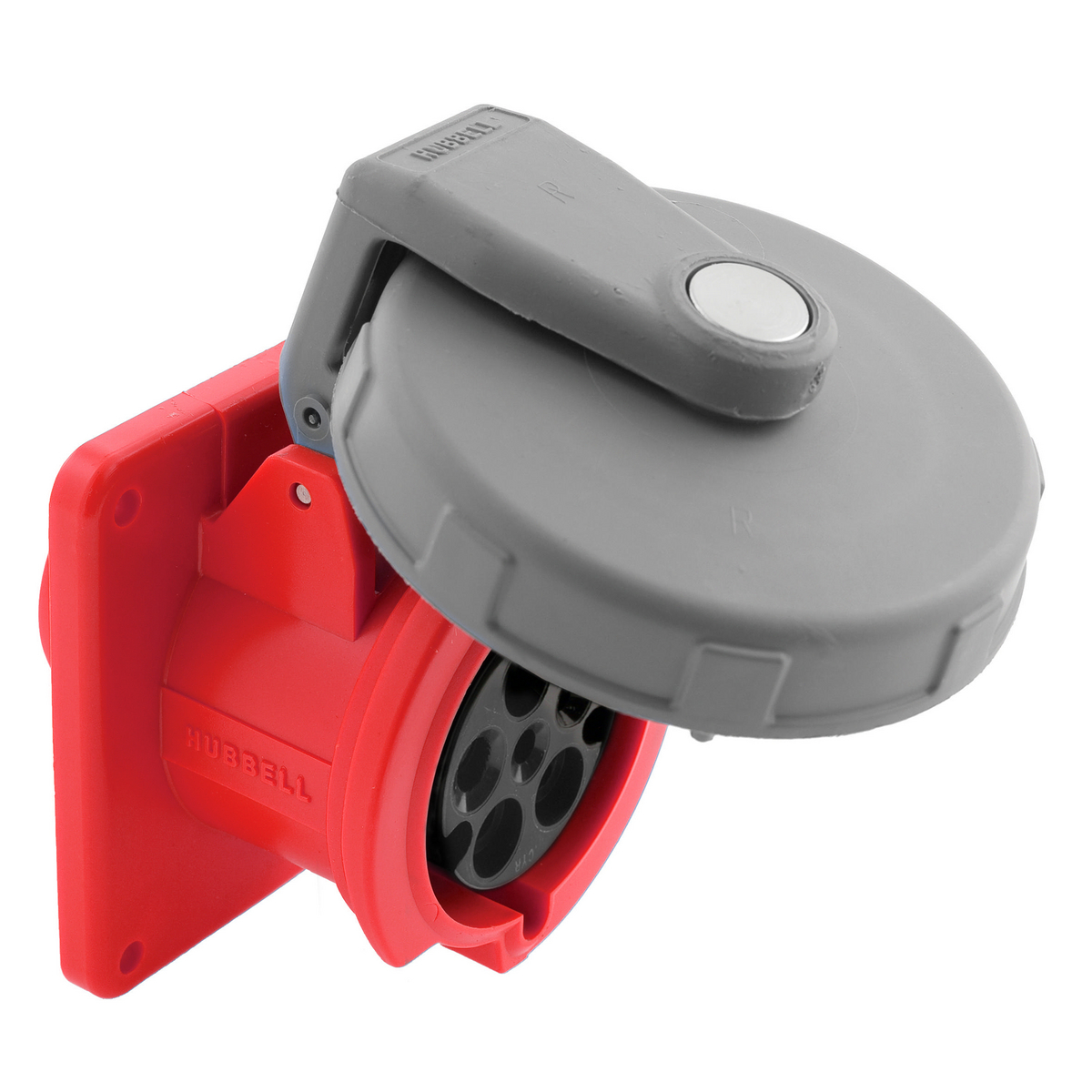

Hubbell HBL532R6W 32 Amp 220 to 415 Volt 4-Pole 5-Wire Red IEC Pin and Sleeve Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL532R6W | Codale Part # 3269307
$371.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 32A 220-415V, 4-Pole 5- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
32 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Current
32 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Type
Watertight
Voltage
240/415 Volt
Wattage
13280 Watt
Wire Count
5
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405599
Color
Red
Product Series
HBL Heavy Duty
Product UPC
78358540559
Weight
1.6 lb

Dimensions

Height
4.62 Inch
Length
6 Inch
Width
5.25 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Features
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification
  • Watertight
