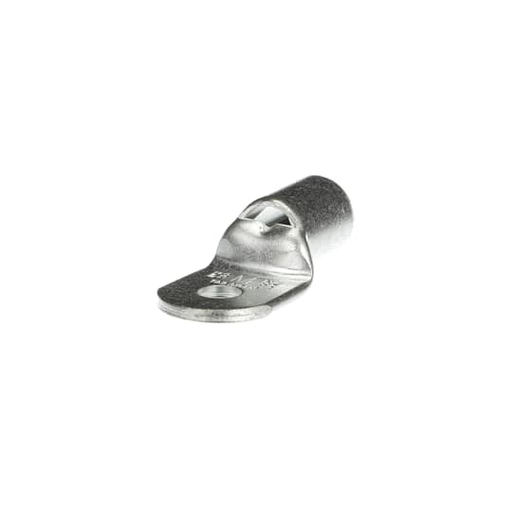

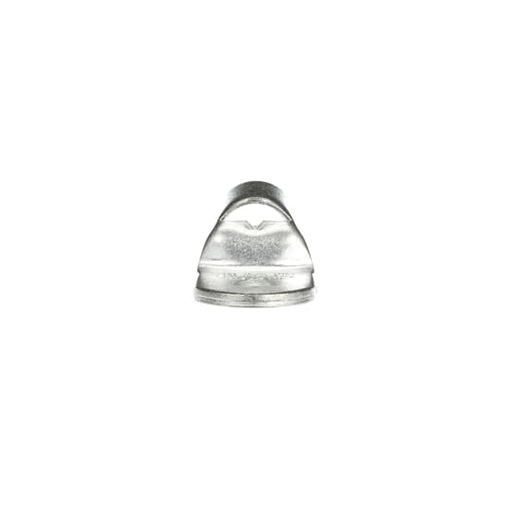

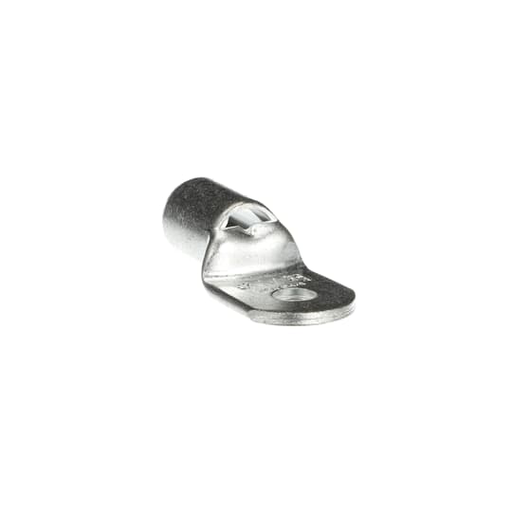

Thomas & Betts M973 Non-Insulated Large Tubular Ring Terminal - 4/0-250MCM, 3/8"bolt (50/Pkg)

Manufacturer: ABB Thomas & Betts | Catalog # M973 | Codale Part # 3269599
$1,152.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Non-Insulated Tubular Ring Terminal, Length 2.40 Inches, Width 1.12 Inches, Bolt Hole 3/8 Inch, Wire Range 4/0AN-250kcmil, Copper, Tin Plated, 50 Pack

Technical Information

Barrel Type
Straight
Conductor Size
4/0 AWG-250 kcmil
Insulation Type
Non-Insulated - Tubular
Material
Copper
Number of Holes
1 Hole
Standard
UL E9809
Temperature Rating
150 degrees C
Type
Non-Insulated Ring Terminal
Voltage
600 Volt
Wire Size
0000 AWG-250 kcmil

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210816289
Color
Metallic
Finish
Tin Plated
Product UPC
78621081628
Weight
0.1200 lb
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
Notes
  • Not available on Mylar Tape.
