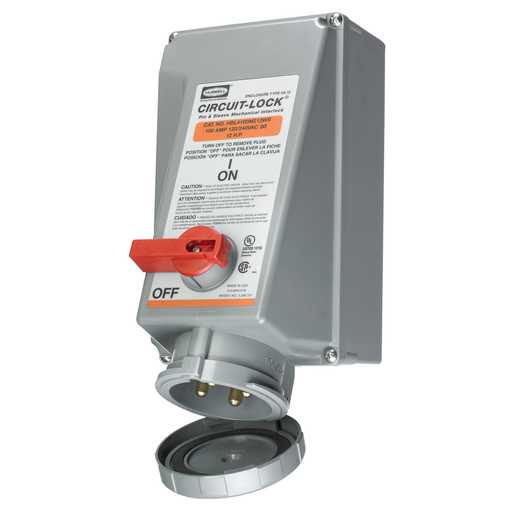

Hubbell HBL4100MI12WR Pin & Sleeve IEC Reverse Service Circuit-Lock® Mechanical Interlock, 100A 3P4W, 120/240V, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4100MI12WR | Codale Part # 3269605
$3,476.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 100A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws Orange

Technical Information

Amperage
100 Amp
Applications
High Ampacity Connections
Conductor Size
3-1/0 AWG
Current
100 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
UL
Style
Reverse Service
Tc Connection
Pressure Screw Terminals
Type
Watertight, Reverse Service
Voltage
120/240 Volt
Wattage
25000 Watt
Wire Count
4
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585012650
Color
Orange
Environmental Conditions
Watertight
Product Series
Unfused Circuit,Lock
Product UPC
78358501265
Weight
10 lb

Dimensions

Height
8 Inch
Length
14.9 Inch
Width
10.900 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Features
  • Captured neoprene gasket for a watertight seal
  • DIN rail mounted switch for easy installation and replacement
  • Solid pins for longer life and reliable electrical contact
  • Watertight
