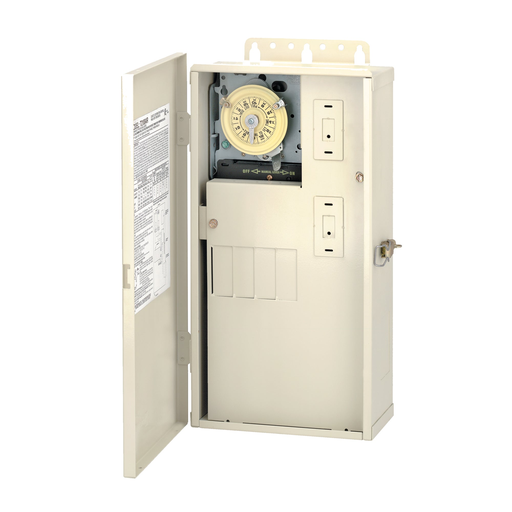

Product image for Intermatic T21004R NEMA 3R Load Center 240 VAC 60 Hz 60 Amp DPST Control System
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Intermatic T21004R NEMA 3R Load Center 240 VAC 60 Hz 60 Amp DPST Control System

Manufacturer: Intermatic | Catalog # T21004R | Codale Part # 3270211
$350.51/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
This system can be used as a load center only, or add a heavy-duty mechanical time switch or wiring devices for a complete system.

Technical Information

Applications
Distribution/Control Panel,Motor Control,Pump Control
Enclosure Rating
3R
Frequency
60 Hz
Input Voltage
208-277 V
Material
Metal
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Surface With Brackets
Number of Circuits
1
Number of Phases
1 Phase
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Standard
CCSAus Certified
Switch Type
DPST

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275083462
Color
Beige
Product UPC
07827508346
Weight
11.7700 lb

Dimensions

Depth
4-3/4 Inch
Height
16-7/8 Inch
Warranty Length
1 yr
Width
8.875 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Four breaker spaces
  • Accepts PF1000M, P1403ME, P1353ME, P4043ME, P4243ME,T100M or RC2000M Series mechanisms
  • Accepts many interchangeable type breakers
  • Load center dead front has two knockouts for switches or GFCIs and one on the side
  • Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
  • NA
