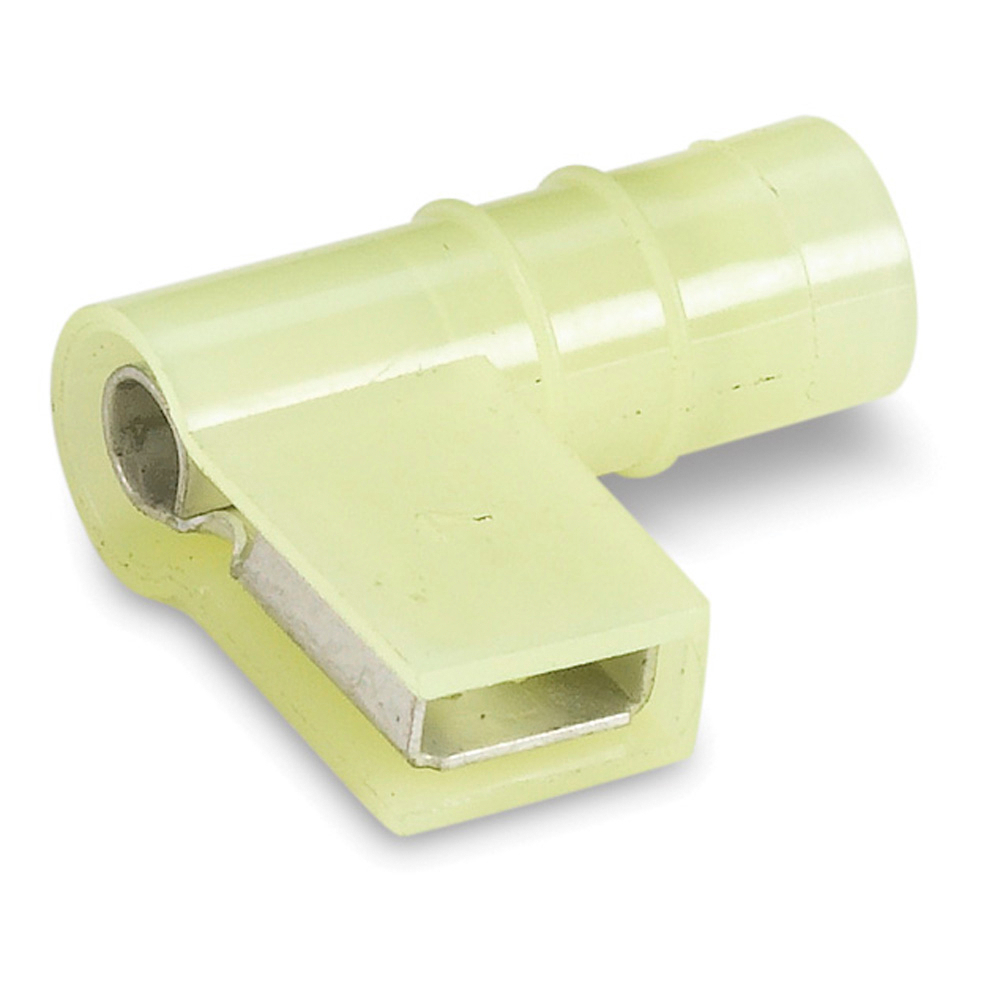

Thomas & Betts RC2577F Nylon Open-Top Insulated 90deg Flag Female Disconnect - 12-10, .250x.032tab

Manufacturer: ABB Thomas & Betts | Catalog # RC2577F | Codale Part # 3271837
$455.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

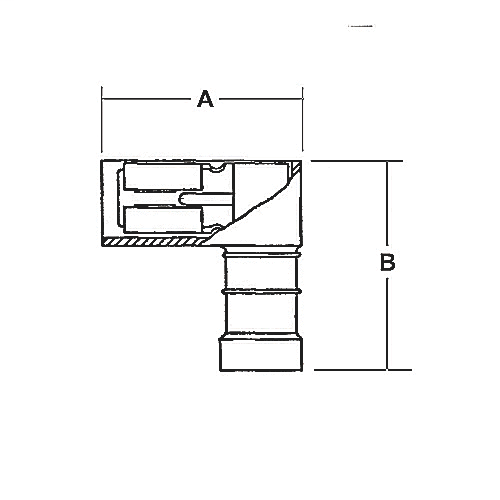

Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inch, Width .88 Inch, Maximum Insulation .245, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Brass, Tin Plated, 500 Pack

Technical Information

Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Brass
Tab Size
6.3 x 0.8 mm
Temperature Rating
105 degrees C
Type
Flat
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210894485
Color
Yellow
Finish
Electro-Tin Plated
Product UPC
78621089448
Weight
0.0069 lb

Dimensions

Length
0.8 Inch
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
