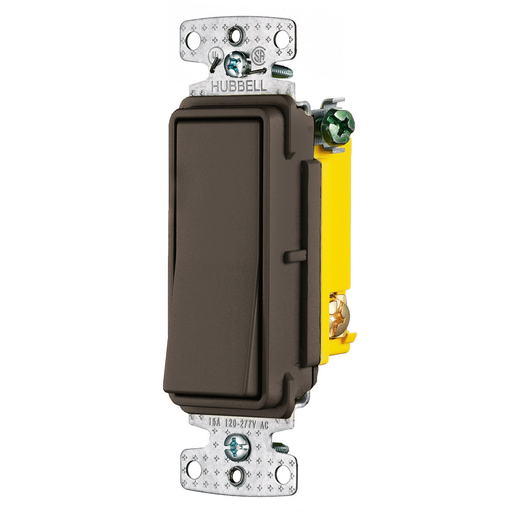

Hubbell RSD315 15 Amp 120/277 VAC 3-Way Brown Rocker Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RSD315 | Codale Part # 3272570
$3.66/ea
ea
Log in or register to view your price, purchase history, and more!
32 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Three Way, 15A 120/277V AC, Push Back and Side Wired, Brown

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
Residential Wiring Devices
Contact Configuration
2 Position
Contact Rating
Per UL 20
Enclosure
None
Indicator
None
Material
Composite
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
30000
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Power Rating
4155 W
Size
Standard Sized
Standard
CSA,E3896,UL
Tc Connection
Push Wired, Back and Side Wired
Temperature Rating
-20 degrees C Minimum without Impact, 60 degrees C Maximum
Terminal Type
Screw
Type
3-Way, General Purpose, Standard
Voltage
120/277 Volt
Wattage
4155 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
883778101236
Color
Brown
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
88377810123
Weight
0.1600 lb

Dimensions

Height
1.4 Inch
Length
4.1 Inch
Width
1.470 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Self-grounding feature is standard
  • Ultrasonically welded cover and base
