Burndy GAR3909BU Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 12" Pipe, 3/8" Stud, W/ silicon bronze hardware

Manufacturer: Hubbell-Burndy | Catalog # GAR3909BU | Codale Part # 3272993
$1,826.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Mechanical Grounding Connector, Conductor to Water Pipe, 4-4/0 AWG, 12" Pipe, 3/8" Stud, W/ silicon bronze hardware

Technical Information

Material
Copper
Plated?
No
Plating Type
Unplated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810001561
Product UPC
78181000156
Weight
0.8450 lb

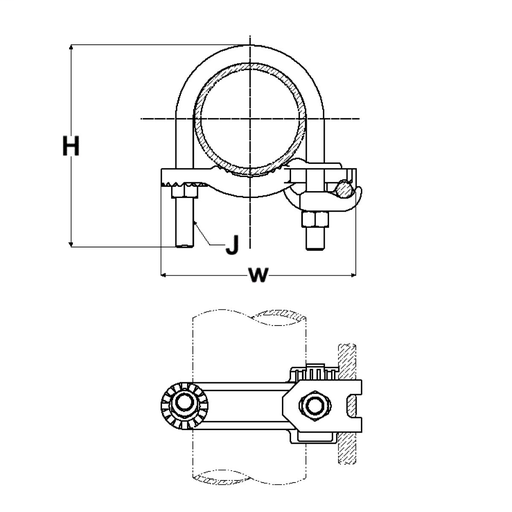

Dimensions

Height
14 Inch
Length
1-3/4 Inch
Overall Length
1.75 in
Width
14.75 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • Cable clamp swivels at 90°
  • One-wrench installation for simplified installation
  • Rated for Direct Burial in earth or concrete
  • UL467 Listed for the US and Canadian Markets
