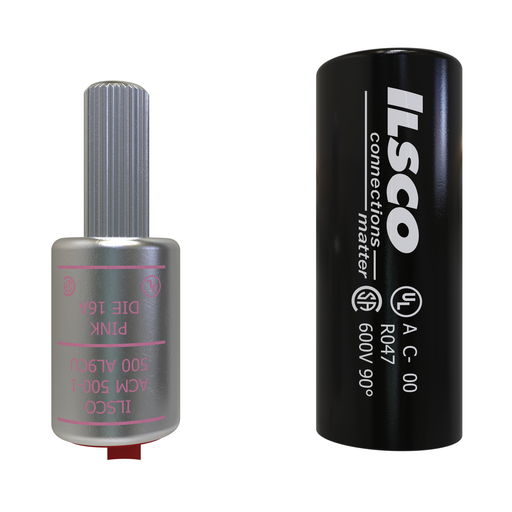

Image thumbnail 1
Image thumbnail 2
Email

Ilsco ACM-500 Aluminum Compression Pigtail Adaptor, Conductor Size 500, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ACM-500 | Codale Part # 3273908
$154.11/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Aluminum Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 500 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Pink, primary color Silver, die index 16A,

Technical Information

Applications
Terminating Connector
Barrel Length
2.03 in
Barrel Type
Standard
Color Coding
Pink
Conductor Material
Aluminum,Copper
Conductor Size
500 kcmil
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum
Material
Aluminum
Number of Conductors
1
Pin Length
1.600 in
Size
L:5.35;W:1.5;H:1.5 IN
Standard
UL Specifications: UL 486A-B,UL File Number: E62525,CSA File Number: LR-29601
Temperature Rating
90 degrees C
Type
Long Sleeve, Round
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669009248
Color
Silver
Product UPC
78366900924
Weight
0.292 lb

Dimensions

Height
1-1/2 Inch
Inside Diameter
0.854 in
Length
5.35 Inch
Outside Diameter
1.32 in
Width
1.5 in
