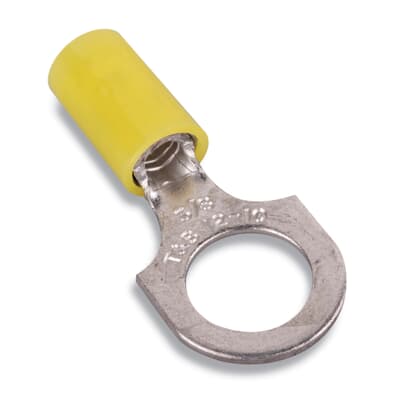

Image thumbnail 4
Email

Thomas & Betts RC703 Nylon-Insulated Ring Terminal - #12-10, 5/16"bolt (500/Box)

Manufacturer: ABB Thomas & Betts | Catalog # RC703 | Codale Part # 3274678
$101.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Nylon Insulated Ring Terminal, Length 1.21 Inches, Width .53 Inches, Maximum Insulation .210, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
CSA,E2186,UL
Stud Size
5/16 in
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210819983
Color
Yellow
Finish
Electro Tin Plated
Product UPC
78621081998
Weight
0.0050 lb
Features
  • Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
