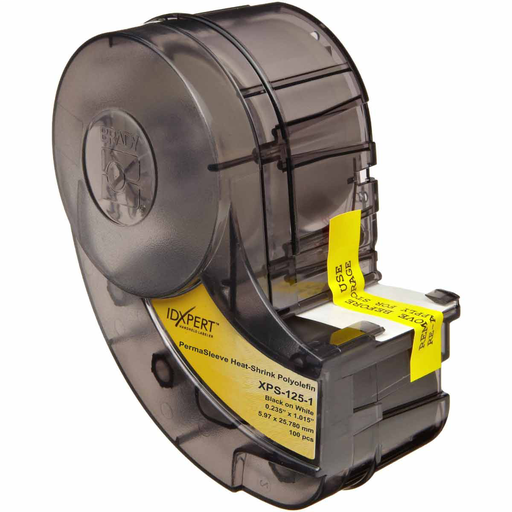

Product image for Brady XPS-125-1 IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each, Maximum Wire Gauge 16
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Brady XPS-125-1 IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, Cartridge of 100 Each, Maximum Wire Gauge 16

Manufacturer: Brady | Catalog # XPS-125-1 | Codale Part # 3277124
$92.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Technical Information

Applications
For Cable and Wire Marking
Cable Size
22-16 ga
Conductor Size
22-16 AWG
Material
Polyolefin
Max Operating Temperature
275 F
Max Temperature
135 degrees C
Min Operating Temperature
-67 F
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Temperature Rating
-94 to 275 degrees F
Type
Roller Shape
Wire Size
22-16 AWG

Manufacturer Information

Brand
Brady Corporation
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820600565
Color
White
Finish
Matte
Product UPC
66282060056
Qty per Row
1
Used With
Idxpert Thermal Transfer Handheld Label Maker
Weight
0.4400 lb

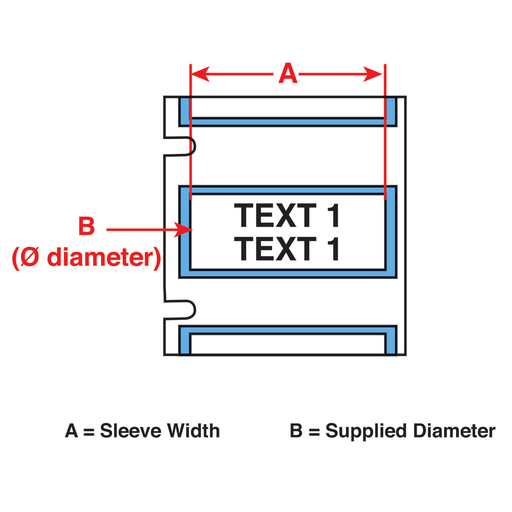

Dimensions

Diameter
1/8 Inch
Height
0.235 Inch
Length
0.235 Inch
Roll Width
1 in
Width
1 in

Certifications & Compliance

Prop 65 Warning
Y
Features
  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • All-in-one cartridge includes ribbon and label supply
