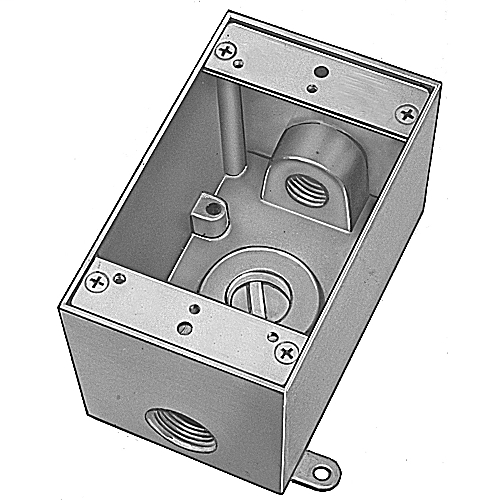

Red Dot IH3-1-LM 1-Gang Weatherproof Metallic Device Box, (3) 1/2" Hubs, 2" Deep

Manufacturer: ABB Thomas & Betts | Catalog # IH3-1-LM | Codale Part # 3277192
$934.62/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single Gang Universal Weatherproof Box, 18.3 Cubic Inches, Hub Size 1/2 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs

Technical Information

Applications
Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Cable Entry
(3) 1/2 in Threaded Hole
Material
Aluminum
Mounting Type
Screw, Wall, Ceiling
Number of Gangs
1 Gang
Type
3-Outlet, 3-Inlet, Rectangular, 3-Hole

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
042269392151
Color
Silver Gray
Product UPC
04226939215
Weight
0.5700 lb

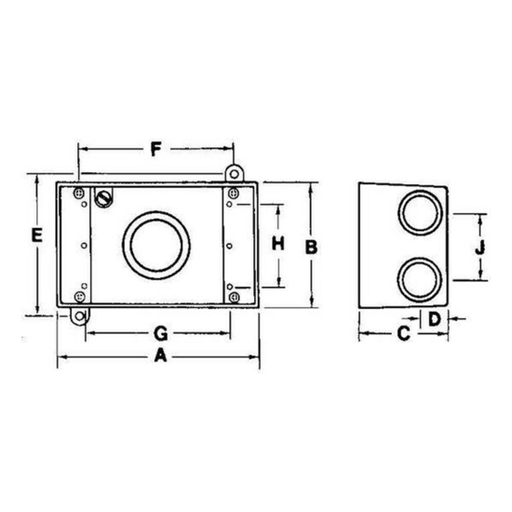

Dimensions

Depth
50.8 mm
Height
10-3/4 Inch
Width
71.4 mm
Features
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Clear UL and cubic content markings speed approval by inspectors
  • Convenient mounting lugs for a variety of mounting methods
  • Clean cover edges provide good gasket sealing.
  • Precision cast and machined surfaces permit safer wire pulling.
  • Securely fastened mounting plates reduce costly call backs
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
Notes
  • Rain tight when used with appropriate Red Dot covers.
Application
  • Junction box for branch conduits
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Certifications
  • UL
