PHIL 166009 MASTER TL5 Circular 22W

Manufacturer: Signify Lamps | Catalog # 166009 | Codale Part # 3280166
$68.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual

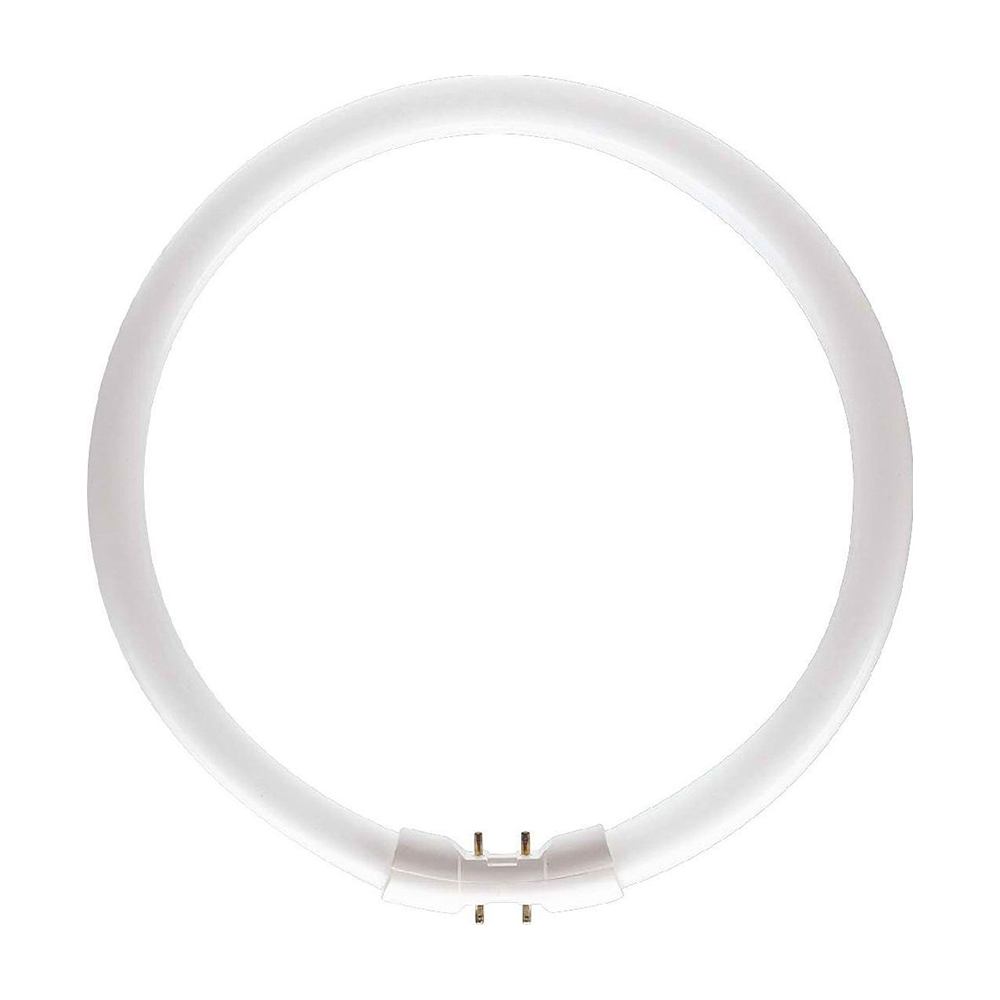

This circular TL5 lamp (tube diameter 16 mm) offers extended design possibilities. The slim tube allows the creation of extremely flat luminaires and enables omni-directional light distribution. It is suitable for a wide range of professional and semi-professional applications, and is ideal for use in shops, offices and public areas with unconventional layouts.

Technical Information

Amperage
0.3 Amp
Applications
For General Purpose Applications
Base
2GX13
Bulb Shape
T5
Color Accuracy
85
Color Coding
841
Color Rendering Index
82
Color Temperature
4100 K
Correlated Color Temp
4,100 K
Dimmable?
Yes
Efficacy
82 LPW
Lamp Wattage
70 wtt
Lumens
1,800 Lumen
Power Consumption
25 KWh
Power Rating
22.3 W
Size
T5
Type
TL
Voltage
84 Volt
Wattage
22 Watt

Manufacturer Information

Brand
Philips Lighting

General Product Info

12-Digit UPC
711500642217
Color
Cool White
Product UPC
71150064221
Weight
80.000 g

Dimensions

Diameter
18 mm
Benefits
  • Slim 16 mm tube allows creation of extremely flat luminaires
  • Allows appealing circular designs
  • High lamp efficacy
  • Good color rendering
  • Higher average system efficiency
Features
  • Perfect circular shape
  • Highly efficient 3-band fluorescent coating
  • Specifically designed for operation with electronic gear
  • Amalgam technology (55 and 60W only)
Applications
  • Brings the benefits of TL5 lighting to an even wider range of attractive applications
  • Suitable for a wide range of professional and semi-professional applications
  • Ideal for use in shops, offices and public areas with non-traditional lay-outs
  • Amalgam lamps 55W and 60W are limited suitable for dimming applications
Warning And Safety
  • A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
  • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
