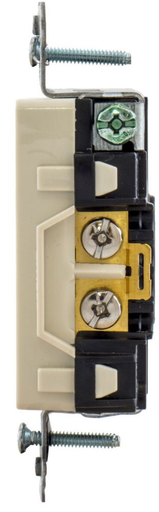

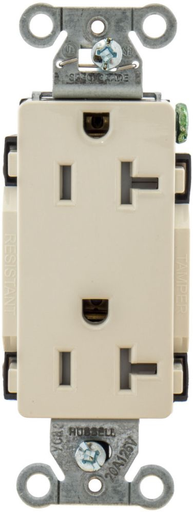

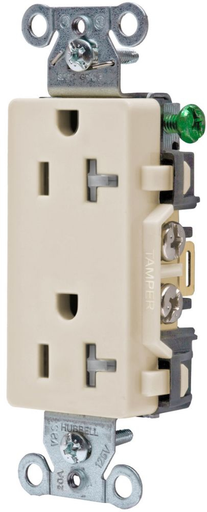

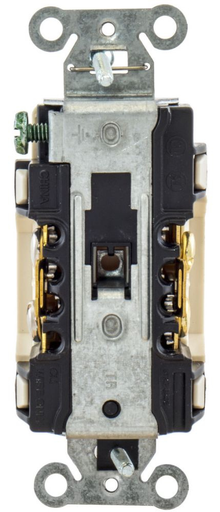

Product image for Hubbell DR20LATR TAMP RES, DECO FACE, 20A 125V, LA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Email

Hubbell DR20LATR TAMP RES, DECO FACE, 20A 125V, LA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR20LATR | Codale Part # 3281763
$5.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Tamper-Resistant Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.

Technical Information

Amperage
20 Amp
Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Style Line Decorator
Tamper Resistant?
Yes
Tc Connection
Back and Side Wired
Type
Decorator, Tamper-Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585144450
Color
Light Almond
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358514445
Weight
0.22 lb

Dimensions

Height
1.29 Inch
Length
3.28 Inch
Width
1.14 in

Certifications and Compliance

Country of Origin
China
Additional Information
  • Contact Material Brass
  • Strap Material Galvanized Steel
  • Temperature Rating -40 to 75 Deg C
Features
  • Easy Installation, Easy Access Split Circuit Tab, Fork Terminal Capable, Self-Grounding Staple
  • Durable Construction, Nylon Face and Base
  • Sturdy Construction, Wrap Around Galvanized Steel Strap
  • Single Tab Break-Off Ears
  • Self-Grounding Staple
  • Easy Access Split Circuit Tab
  • Fork Terminal Capable
  • Oversized Terminal Screw
  • Permanently Marked Receptacles for Automatic Outlet Control System
  • These Receptacles are Embossed with the Universally Recognized Power Symbol and the Word \"Controlled\" Remains Clearly Visible after Installation
