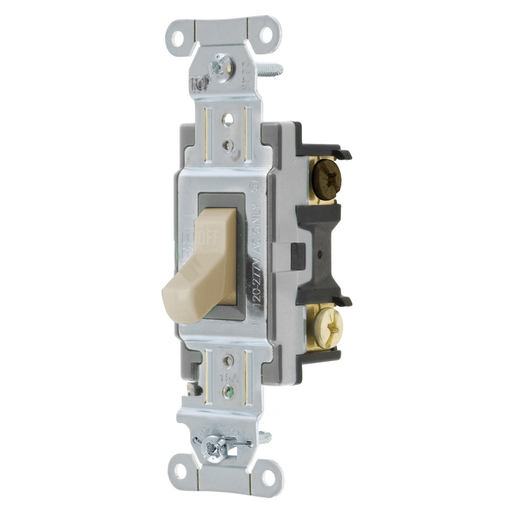

Hubbell CS315AL SWITCH, SPEC, 3W, 15A 120/277V, AL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CS315AL | Codale Part # 3281899
$5.35/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Three Way, 15A 120/277V AC, Side Wired, Almond

Technical Information

Actuator
Toggle
Amperage
15 Amp
Applications
Commercial Spec Grade
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Grade
Commercial Specification
Material
Thermoplastic
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Standard
UL
Style
Three Way
Tc Connection
Side Wired Only
Type
General Purpose, Standard, 3-Way, 2-Position
Voltage
120-277 Volt
Wattage
4.155 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585705026
Color
Almond
Product Series
General Purpose
Product UPC
78358570502
Weight
0.1500 lb

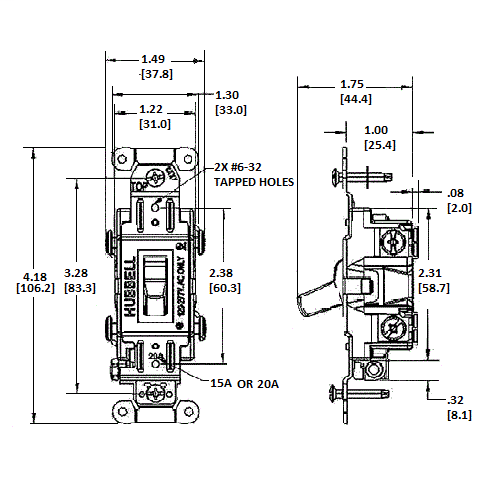

Dimensions

Height
1.66 Inch
Length
4.16 Inch
Width
1.910 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
