Thomas & Betts E6-10 #6 AWG Wire Range #10 Bolt Hole Non-Insulated Brazed Seam Metallic Ring Terminal

Manufacturer: ABB Thomas & Betts | Catalog # E6-10 | Codale Part # 3282013
$380.99/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

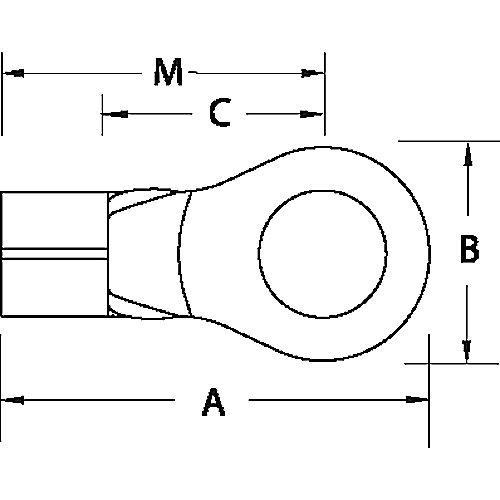

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.13 Inches, Width .48 Inches, Bolt Hole #10, Wire Range #6 AWG, Copper, Tin Plated, 20 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
6 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Stud Size
#10
Temperature Rating
150 degrees C
Terminal Type
E
Type
Short Sleeve
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803579
Color
Metallic
Finish
Electro Tin Plated
Product UPC
78621080357
Weight
0.0163 lb

Dimensions

Height
2.9 Inch
Thickness
.06 in
Width
1.1 in
Certifications
  • UL
  • CSA
Notes
  • Not available on Mylar Tape.
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
