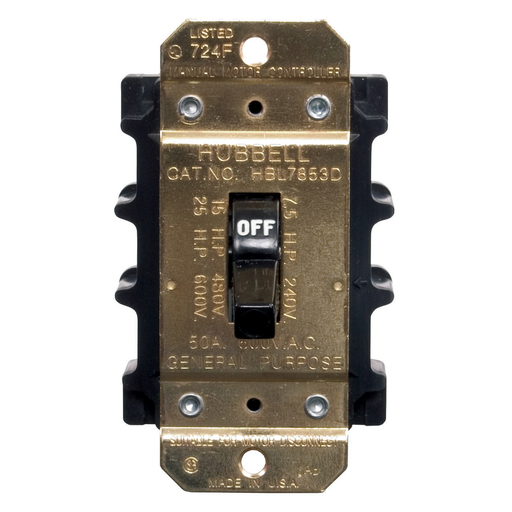

Product image for Hubbell HBL7853DDISCONNECT 50A 600V 3P DISC SW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 5
Email

Hubbell HBL7853DDISCONNECT 50A 600V 3P DISC SW

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7853D | Codale Part # 3282227
$270.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 50A 600V AC, Side Wired Only

Technical Information

Amperage
50 Amp
Applications
Motor Starting without Overload Protection
Current
50 Amp
Enclosure Type
None
Horsepower
25 hp
Material
Stainless Steel
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Operating Temperature
-40 degrees C
Power Rating
30,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C
Type
Open Switch, Standard Toggle
Voltage
600 Volt
Wattage
30000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202877
Product Series
Standard Toggle
Product UPC
78358520287
Weight
0.45 lb

Dimensions

Height
2.418 Inch
Length
3.978 Inch
Width
2.418 in

Certifications and Compliance

Country of Origin
USA
Features
  • Optional side guard for close wall applications
  • Strong on/off action with quick-make slow break operation
  • Thermoset body provides superior dielectric strength
  • Standard Product
