Hubbell HBL8200SGWADUP Receptacle, TAMP-RES, 15A 125V, 5-15R, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8200SGWA | Codale Part # 3282294
$29.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Tamper Resistant Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty, Hospitals
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
PBT
Grade
Hospital
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Tamper Resistant
Tamper Resistant?
Yes
Tc Connection
Back & Side Wired
Type
Tamper-Resistant, Extra Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
12-10 V

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585152264
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358515226
Weight
0.5 lb

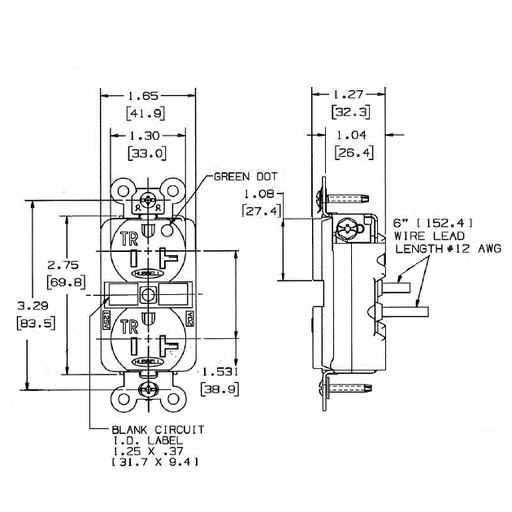

Dimensions

Height
1.27 Inch
Length
3.29 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
China
Features
  • Unique tamper-resistant contact mechanism prevents injury
  • Integral wire leads for fast installation and no exposed live parts
  • One-piece nickel-plated brass ground strap
  • I.D. marking surface helps in quick circuit identification
  • Tamper Resistant
