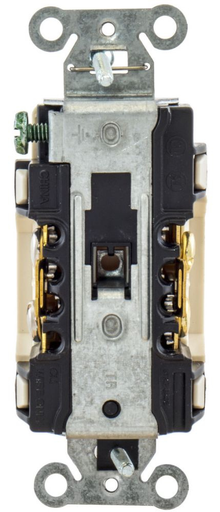

Image thumbnail 2

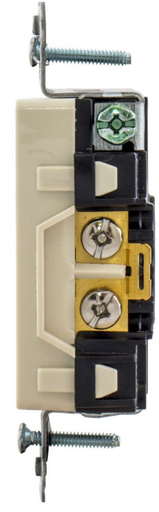

Image thumbnail 3

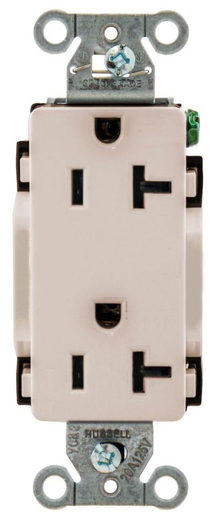

Image thumbnail 4

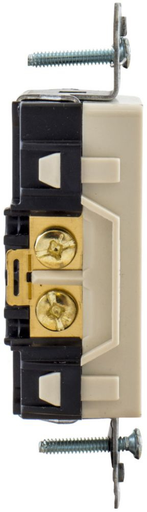

Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

Hubbell DR20LADECO Receptacle, COMM GRD, 20A 125V, 5-20R, LA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR20LA | Codale Part # 3284351
$4.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial/Industrial
Grounding
Self
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tc Connection
Back and Side Wired
Type
Decorator
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127934
Color
Light Almond
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Commercial Specification Grade
Product UPC
78358512793
Weight
0.15 lb

Dimensions

Height
1.29 Inch
Length
3.28 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Additional Information
  • Contact Material Brass
  • Strap Material Galvanized Steel
  • Operating Temperature -40 to 75 Deg C
Features
  • Easy Installation, Easy Access Split Circuit Tab, Fork Terminal Capable, Self-Grounding Staple
  • Durable Construction, Nylon Face and Base
  • Sturdy Construction, Wrap Around Galvanized Steel Strap
  • Single Tab Break-Off Ears
  • Self-Grounding Staple
  • Easy Access Split Circuit Tab
  • Fork Terminal Capable
  • Oversized Terminal Screw
  • Permanently Marked Receptacles for Automatic Outlet Control System
  • These Receptacles are Embossed with the Universally Recognized Power Symbol and the Word \"Controlled\" Remains Clearly Visible after Installation
