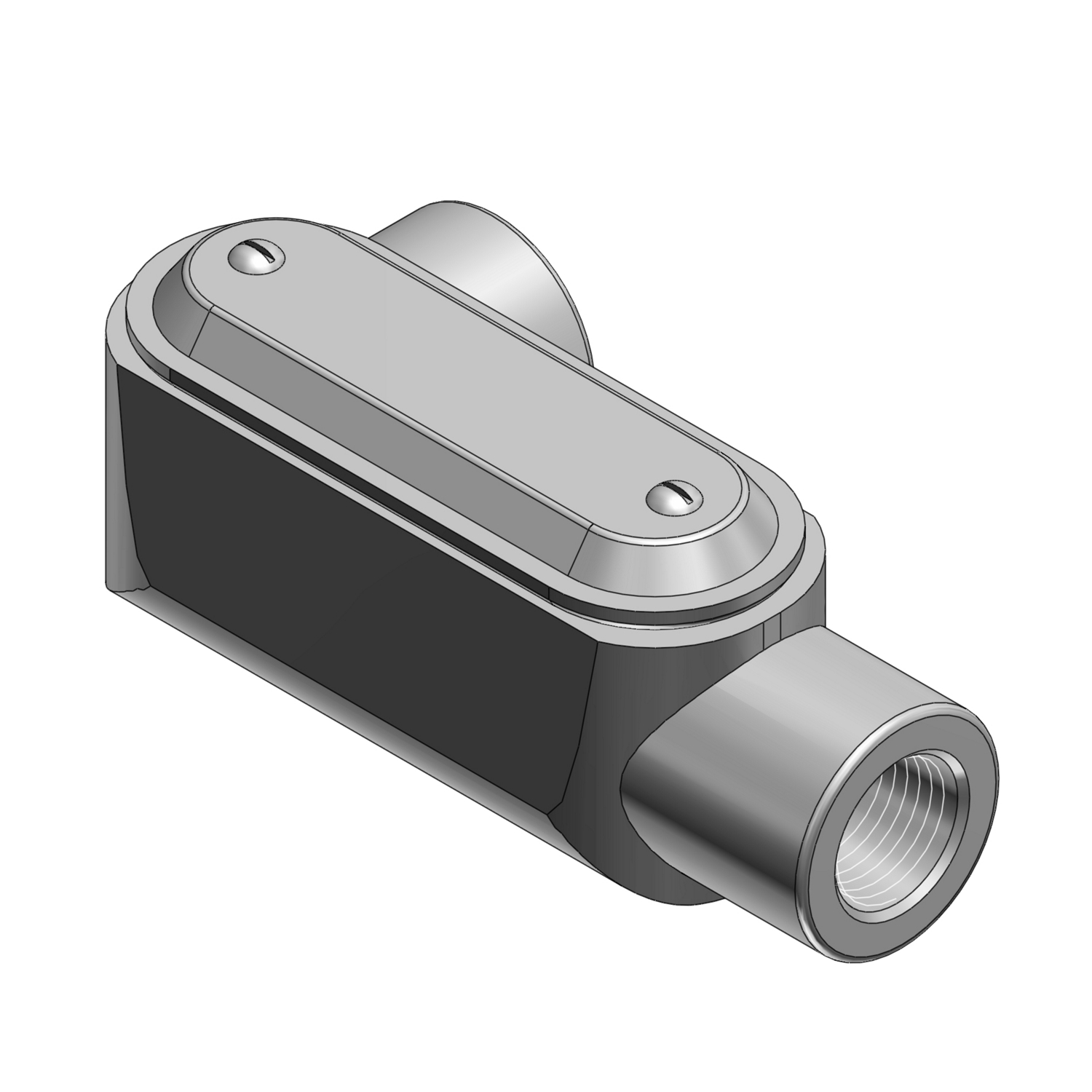

Ocal LL27-G 3/4" PVC-Coated Ocal-Blue® LL-Style Conduit Body, Form-7 - Gray

Manufacturer: ABB Ocal | Catalog # LL27-G | Codale Part # 3284908
$163.95/ea
ea
Log in or register to view your price, purchase history, and more!
33 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
PVC Coated Conduit Body, LL Shape, Form 7, Size 3/4 Inch/21 Metric, Iron, Dark Gray

Technical Information

Applications
For Act as Pull Outlets For Conductors
Hub Size
3/4 in, 21 mm
Material
Iron
Size
3 in
Standard
CSA,E2186,UL
Trade Size
3/4 Inch
Type
Type LL

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508392741
Color
Gray
Finish
Double Coated, PVC Coated
Product UPC
70450839274
Weight
2.1200 lb

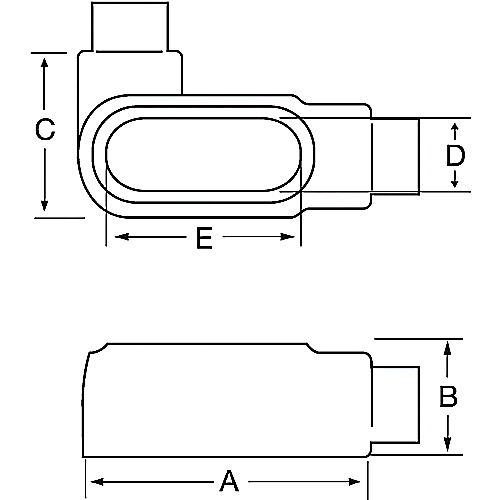

Dimensions

Height
1.65 Inch
Length
5-1/4 Inch
Width
1.6 in
Application
  • Provide for access to conductors for maintenance and future system changes
  • Act as pull outlets for conductors being installed
  • Connect conduit sections
  • Provide openings for making splices and taps in conductors
  • Provide taps for branch conduit runs
  • Make 90° bends in conduit runs
Certifications
  • UL
  • CSA
Features
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
Notes
  • Dimensional values are of uncoated conduit bodies.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
