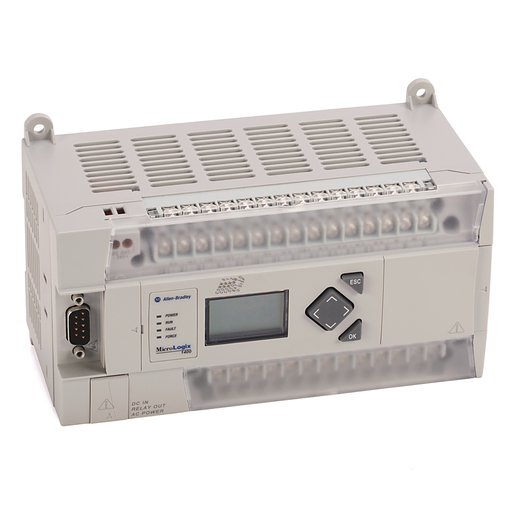

Allen-Bradley 1766-L32AWA Micrologix 1400 32-Point Controller

Manufacturer: Allen Bradley / Rockwell | Catalog # 1766-L32AWA | Codale Part # 3286078
$1,471.51/ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
MicroLogix 1400 32 Point Controller

Technical Information

Display Type
YES
Enclosure
IP20
Input Voltage
120 V
Memory
20 KB
Mounting Type
DIN Rail, Panel Mount
Number of Channels
20 I/P, 12 O/P
Operating Temperature
-20 To 60 degrees C
Output Signal
Relay
Power Supply
120/240V AC
Standard
C-Tick,C-UL-us CL1DIV2,CE,KCC
Type
32-Point

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
MicroLogix™ 1400

General Product Info

12-Digit UPC
612598518098
Class
Programmable Logic Controller Accessories
Product UPC
61259851809
Weight
2.4400 lb

Dimensions

Depth
87 Inch
Width
180
Features
  • Up to 128 KB for data logging and 64 KB for recipe
  • As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
  • Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
  • 10 KB words in user program memory with 10 KB words in user data memory)
  • Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
  • Built-in LCD with backlight lets you view controller and I/O status
  • Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
  • Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
Accessories
  • 1585J-M8TBJM-1M9
