Hubbell HBL52CM62I 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Ivory Straight Blade Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL52CM62I | Codale Part # 3286358
$62.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Marine Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack, Chem-Marine.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Marine
Grounding
Grounding
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585411026
Color
Ivory
Environmental Conditions
Weather-Resistant
Product Series
HBL Extra Heavy Duty
Product UPC
78358541102
Weight
0.25 lb

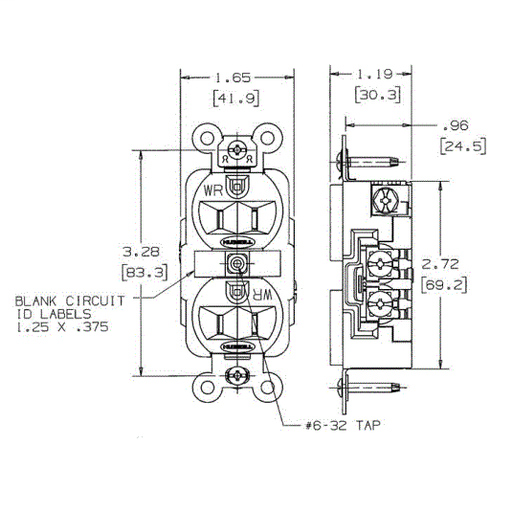

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Back wired ground terminal allows faster, easier installation
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face
  • Corrosion resistant
  • Corrosion Resistant
