Hubbell HBL52CM66C 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Yellow Nylon Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL52CM66C | Codale Part # 328898
$62.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 125V, 15A 5-15P, Yellow, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Marine Wiring Devices
Conductor Size
16-10 AWG
Cord Type
Portable
Current
15 Amp
Grounding
Yes
Horsepower
0.50 hp
Material
Thermoplastic
Mounting Type
Cord
NEMA
5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Corrosion Resistant
Tc Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585161501
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Insulgrip
Product UPC
78358516150
Weight
0.2 lb

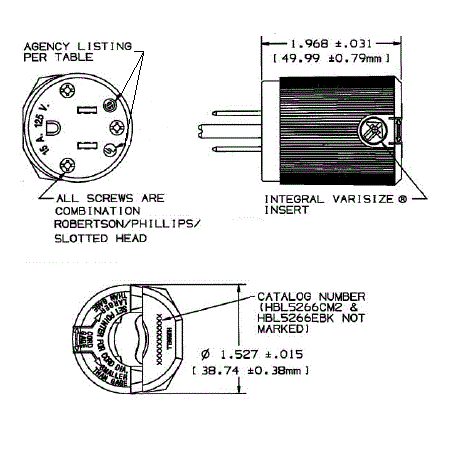

Dimensions

Height
1.96 Inch
Length
1.52 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
  • Weatherproof Boot
