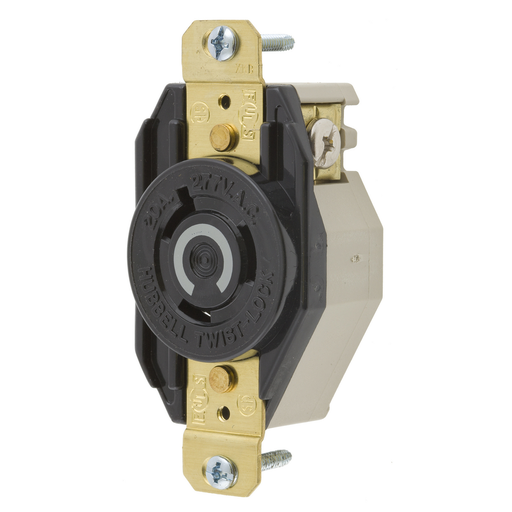

Hubbell HBL2330 20A 277V AC Twist-Lock Black Nylon Single Flush Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2330 | Codale Part # 328906
$16.70/ea
ea
Log in or register to view your price, purchase history, and more!
65 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20R, Screw Terminal, Nylon face, Back and side wire, Black.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
Nylon Polyester
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Grounding
Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L7-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Bronze,Steel, Zinc plated
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Heavy Duty
Voltage
277 Volt
Wattage
5540 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235660
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523566
Weight
0.30 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard
