ABB RA2517 INS VIN MALE-250 TAB 22-

Manufacturer: ABB Thomas & Betts | Catalog # RA2517 | Codale Part # 3289142
$67.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

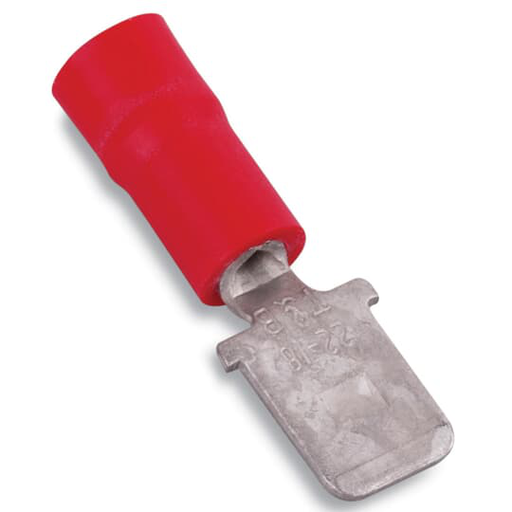

Vinyl-Insulated Male Tab, Length .95 Inches, Maximum Insulated .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
22-18 AWG
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Brass
Standard
UL E66716
Tab Size
6.3 x 0.8 mm
Temperature Rating
105 degrees C
Type
Vinyl Insulated Male Disconnect
Voltage
600 Volt
Wire Size
22-18 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210874340
Color
Red
Finish
Electro Tin Plated
Product UPC
78621087434
Weight
0.0019 lb
Notes
  • Bulk catalog numbers can be put on Mylar Tape for reel-fed applications (i.e. 12050 tool and application dies). Please add the suffix M for Mylar tape.
