ABB RB1223 INSNYL FORK TERM FLG 18-

Manufacturer: ABB Thomas & Betts | Catalog # RB1223 | Codale Part # 3289145
$100.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Nylon Insulated Fork Terminal with Flanged Tongue, Length .89 Inches, Width .31 Inches, Maximum Insulation .162, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Insulation Material
Polyamide
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Type
Nylon Insulated Flanged Fork Terminal
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210819150
Color
Blue
Finish
Tin Plated
Product UPC
78621081915
Weight
2.7500 lb

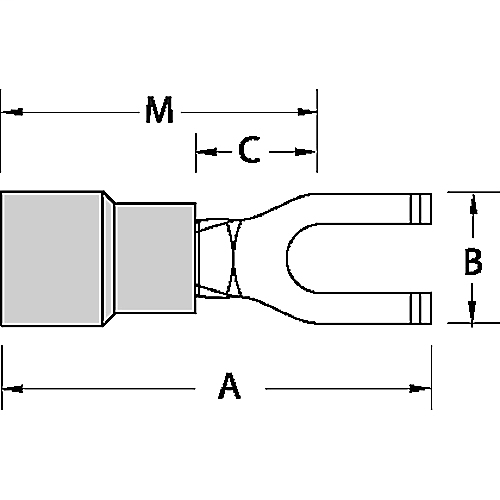

Dimensions

Length
0.89 Inch
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
