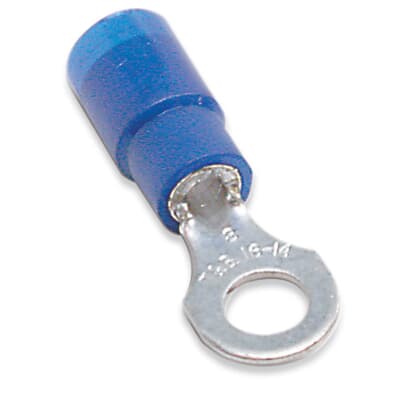

Image thumbnail 3
Email

EXP INS NYL RING TERM, 18-14, #10

Manufacturer: ABB Thomas & Betts | Catalog # RB874 | Codale Part # 3289151
$148.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Nylon Insulated Expanded Entry Ring Terminal, Length .95 Inches, Width .31 Inches, Maximum Insulation .190, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
18-14 AWG
Insulation Material
Nylon
Insulation Type
Expanded Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210818887
Box Quantity
5000
Color
Blue
Finish
Electro Tin Plated
Product UPC
78621081888
Weight
0.0025 lb
Features
  • Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation.
  • Ring terminals won't fall free even if the mounting screw loosens.
  • Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A
  • Alternate Package Qty: RB14-10X
