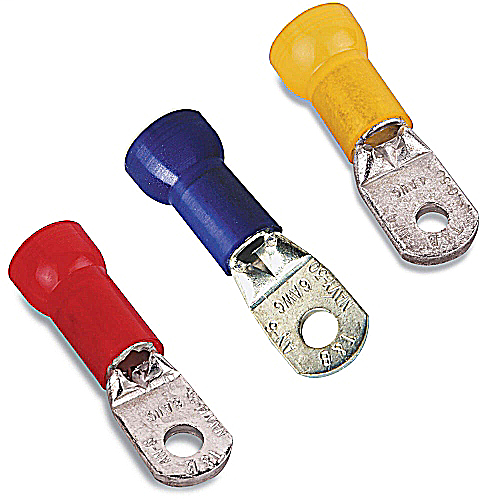

Thomas & Betts RD8-38 3/8 Inch 8 AWG Red Insulated Nylon Ring Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RD8-38 | Codale Part # 3289156
$486.99/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
25 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Nylon Insulated Large Ring Terminal, Length 1.63 Inches, Width .57 Inches, Maximum Insulation .340, Bolt Hole 3/8 Inch, Wire Range 8, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed/Overlapping Seam, Funnel
Conductor Size
8 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
3/8 in
Temperature Rating
105 degrees C
Terminal Type
RD
Type
Short Sleeve
Voltage
600 Volt
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210878591
Color
Red
Finish
Electro Tin Plated
Product UPC
78621087859
Weight
0.0100 lb

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.3 in
Certifications
  • CSA
  • UL
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
