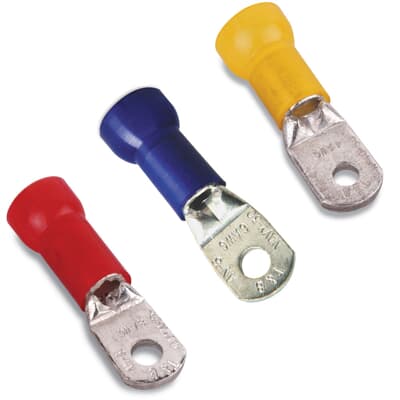

Product image for Thomas & Betts RG2-38 3/8 Inch 2 AWG Red Insulated Nylon Ring Tongue Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts RG2-38 3/8 Inch 2 AWG Red Insulated Nylon Ring Tongue Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RG2-38 | Codale Part # 3289163
$1,220.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
50 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Nylon Insulated Large Ring Terminal, Length 2.15 Inches, Width .69 Inches, Maximum Insulation .588, Bolt Hole 3/8 Inch, Wire Range 2, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
2 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
105 degrees C
Terminal Type
RG
Type
Short Sleeve
Voltage
600 Volt
Wire Size
2 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210872186
Color
Red
Finish
Electro Tin Plated
Product UPC
78621087218

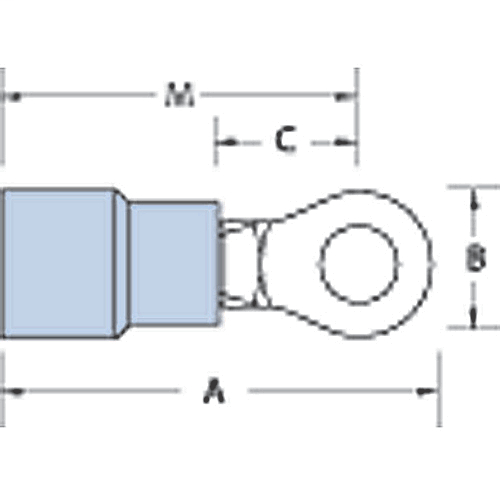

Dimensions

Height
3 Inch
Thickness
.05 in
Width
1.3 in
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Certifications
  • CSA
  • UL
Notes
  • Not available on Mylar Tape.
