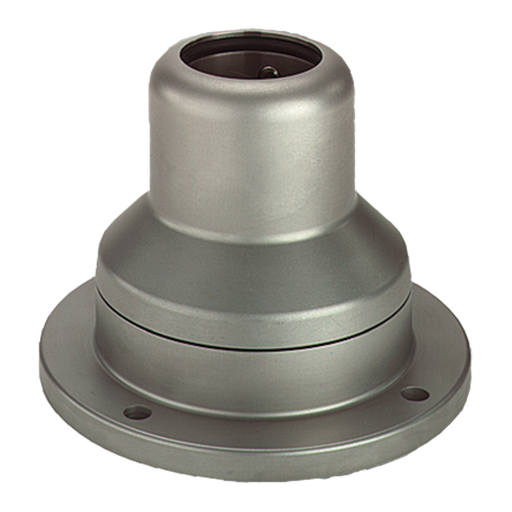

Product image for Hoffman CCSS48BBRE CS480 Swivel Base for External Attachment, fits 48.3mm Tube, SS Type 304
Image thumbnail 0
Image thumbnail 1
Email

Hoffman CCSS48BBRE CS480 Swivel Base for External Attachment, fits 48.3mm Tube, SS Type 304

Manufacturer: nVent Hoffman | Catalog # CCSS48BBRE | Codale Part # 3291632
$3,577.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CS480 Swivel Base External allows the entire suspension system to rotate at the point of attachment on a horizontal surface. Arm can be rotated or turned 340 degrees. Base mounting hardware is exposed. Maintenance-free bearings.

Technical Information

Applications
Controls and Drives, Corrosive Environments
Material
Stainless Steel
Size
fits 48.3mm Tube in
Type
CS480 Stainless Steel

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Compact™

General Product Info

12-Digit UPC
783510424695
Color
Unpainted
Finish
Brushed
Product UPC
78351042469
Used With
CS480 Stainless Steel Pendant Arm System, 48.3 mm Tube
Weight
9.3 lb

Dimensions

Depth
5.87 Inch
Height
4.33 Inch
Length
6.4 Inch
Width
5.87 in
DISK UNSPSC
39121324
Features
  • Base can rotate 340 degrees with rotation stop
  • Torque preset at factory
  • Gasket is included
  • Surface mounting fasteners are not provided
  • Assembled CS480 HMI Arm System has a max weight load of 89.6 lb. (40.7 kg)
