Panduit ASMS-A-X Cable Tie Mount, Swivel, Epoxy, 1.13"x1.13" (28.7mm x 28.7mm)

Manufacturer: PANDUIT | Catalog # ASMS-A-X | Codale Part # 3292433
$13.07/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

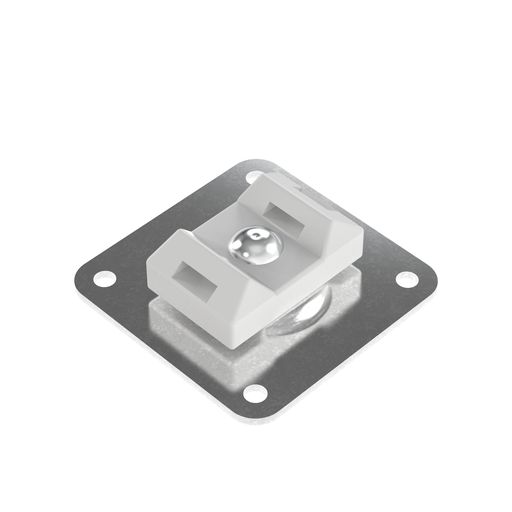

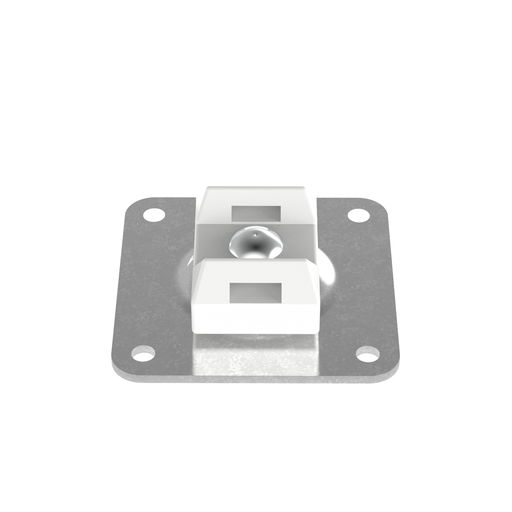

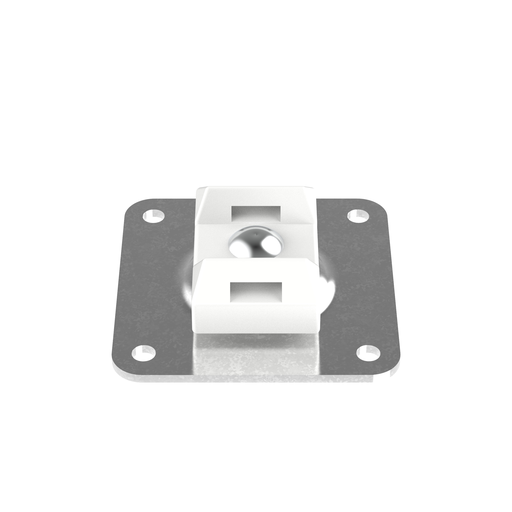

Panduit ASMS-A-X Epoxy Applied Swivel Mounts are affixed with user supplied EMA epoxy. They swivel 360? in order to assure proper orientation with harness and have four inspection holes to observe adhesive coverage. Mounts are 1.13. x 1.13. (28.7 x 28.7mm) in size and are for use in indoor environments. The mount is made of Nylon and the base is made of Aluminum. They are natural in color and come in packages of 10.

Technical Information

Applications
Epoxy Applied Cable Tie Swivel Mount, Used with Miniature, Intermediate, and Standard Cable Ties
Cable Size
NA
Cable Type
Cable Tie Mount
Material
Nylon
Max Operating Temperature
185 degrees F
Min Operating Temperature
-60 degrees C
Mounting Type
Adhesive
Operating Temperature
185 degrees F
Type
Cable Tie Mount

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
074983580057
Color
Natural
Environment
Indoor
Product UPC
07498358005
Weight
0.1000 lb

Dimensions

Height
0.35 Inch
Overall Length
1.13 in
Width
1.12 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CE Compliant, UL Recognized: E136577, RoHS Compliant
