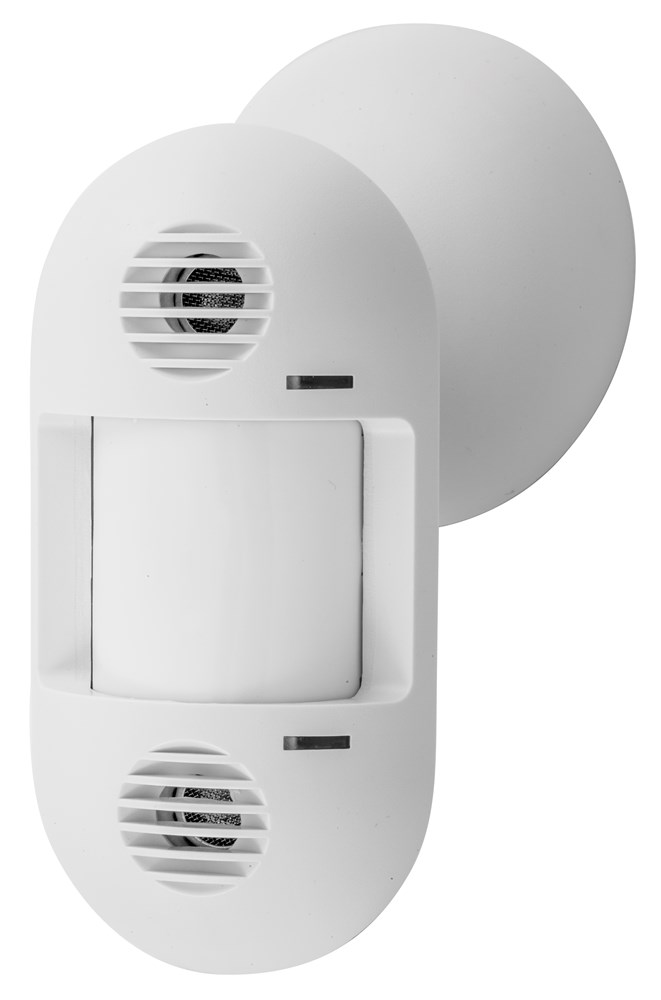

Product image for Hubbell ATD1600WRP 24 VDC 1600 Square Foot White Ultrasonic and Passive Infrared Adaptive Wall Mount Sensor
Image thumbnail 0
Image thumbnail 1

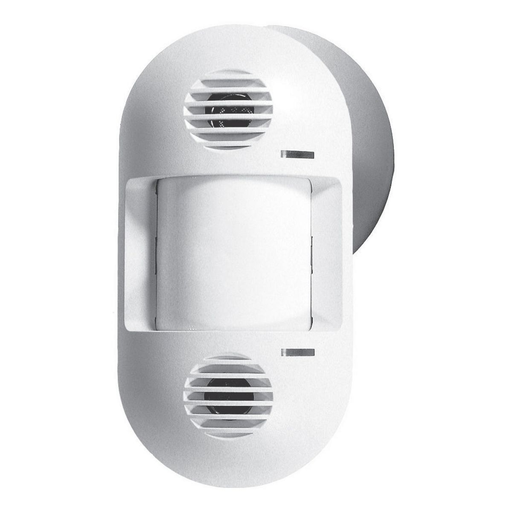

Image thumbnail 2
Image thumbnail 3

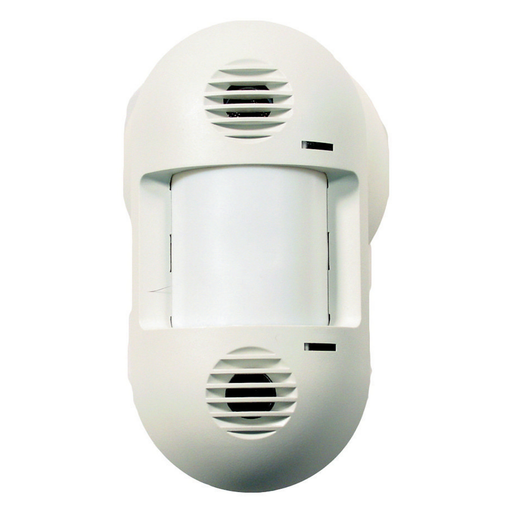

Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell ATD1600WRP 24 VDC 1600 Square Foot White Ultrasonic and Passive Infrared Adaptive Wall Mount Sensor

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # ATD1600WRP | Codale Part # 3292856
$330.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Occupancy Sensors, Adaptive TechnologyDual (Ultrasonic and PIR) Wall Mount Sensor, 1600 Square FeetCoverageSQ' With Relay

Technical Information

Applications
Wall Mount
Indicator
PIR= Red LED, Ultrasonic= Green LED
Material
ABS Plastic
Mounting Type
Wall Mount
Operating Cycles
6k
Operating Temperature
0 To 40 degrees C
Sensing Range
8 to 12 Feet Mounting Height
Size
NEMA 3
Standard
ASHRAE 90.1,CULus,UL244A
Style
Wall Mount
Type
Non-Reversing
Voltage
24 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
HMOSS

General Product Info

12-Digit UPC
783585349213
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Dual
Product UPC
78358534921
Weight
0.0670 lb

Dimensions

Height
6 Inch
Length
7.1 Inch
Width
2 in

Certifications and Compliance

Country of Origin
China
Features
  • Dual (ultrasonic and passive infrared), low voltage sensor with photo cell and isolated relay
  • Coverage 1600 sq. ft.
  • Adaptive technology - \"Install and forget\" operation
  • 110° coverage provides complete room sensing when corner mounted
  • Swivel mounting bracket included for wall or ceiling mounting
  • With Photocell and Relay
