Hubbell HBL2336 20 Amp 277 Volt 2-Pole 3-Wire NEMA L7-20R White Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2336 | Codale Part # 329487
$146.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20R, Screw Terminal, Nylon casing, Back wired, White.

Technical Information

Amperage
20 Amp
Applications
Insulgrip
Conductor Size
14-8 AWG
Connection Type
Screw Terminal
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush

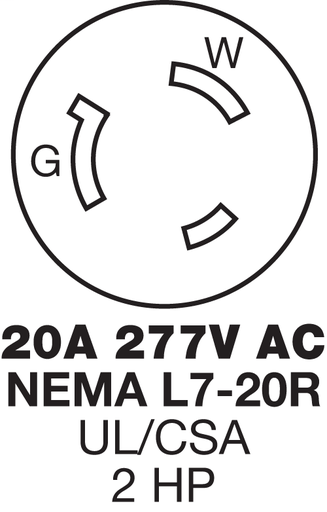

NEMA
L7-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single, Standard Size
Voltage
277 Volt
Wattage
5540 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585037943
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503794
Weight
0.25 lb

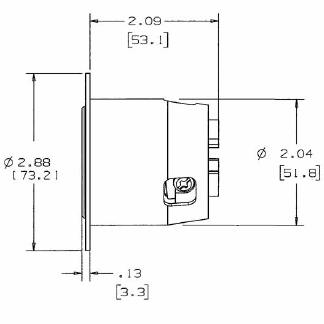

Dimensions

Height
2.09 Inch
Length
2.88 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
