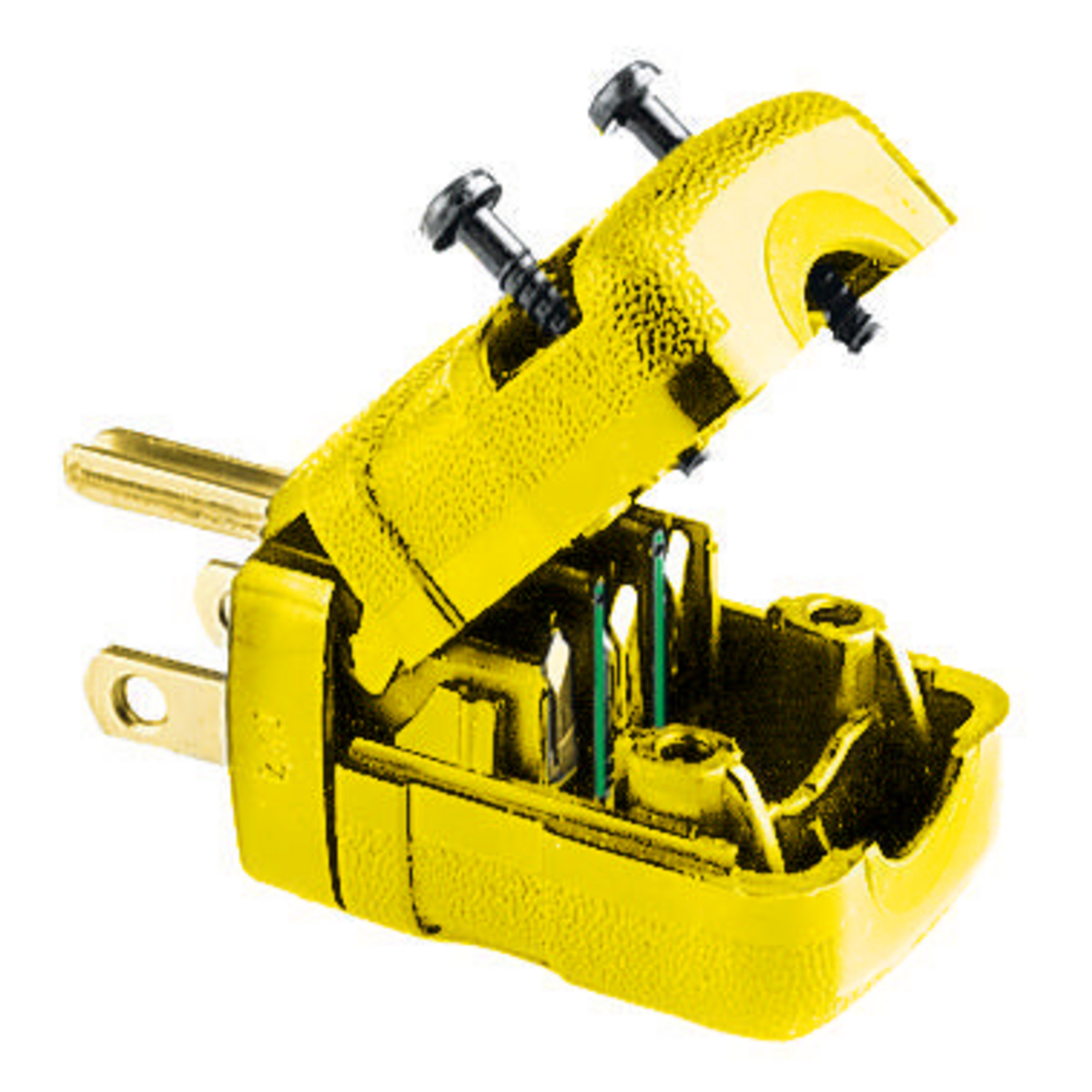

Product image for Hubbell HBL5966VY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Yellow Nylon Straight Blade Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL5966VY 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Yellow Nylon Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5966VY | Codale Part # 3296296
$20.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
18-16 AWG
Cord Type
All Portable
Current
15 Amp
Horsepower
2 hp
Material
Polycarbonate
NEMA
5-15P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Rating
125 V
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,NEMA® WD-6,UL,UL498 File E1706
Tc Connection
Terminal Screws
Type
Valise
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-16 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585019420
Color
Yellow
Environmental Conditions
Indoor Dry unless protected by additional means
Housing Material
Nylon
Product UPC
78358501942
Weight
0.05 lb

Dimensions

Height
1.6 Inch
Length
2.91 Inch
Width
1.600 in

Certifications and Compliance

Certifications
CSA Certified To C22.2 No. 42 File 280,UL Listed To UL498 File E1706
Country of Origin
USA
Features
  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
  • Insulation displacement terminals reduce assembly time
