Hubbell HBL27CM23 Locking Connector, CM, 30A 3PH 250V L15-30R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27CM23 | Codale Part # 329631
$409.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Female Insulgrip® Connector Body, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30R, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Grade
Chemical Marine
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
NEMA

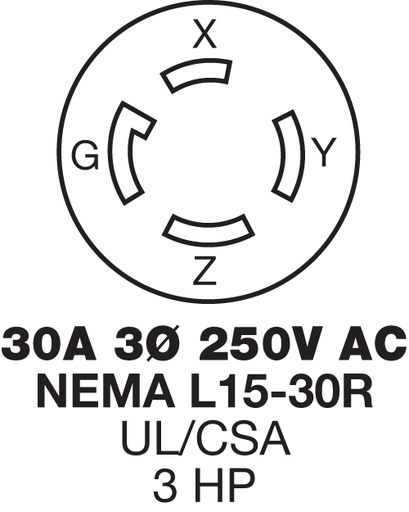

L15-30R
Number of Conductors
4-Wire Grounding
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C
Type
Corrosion-Resistant
Voltage
250 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039589
Color
Yellow
Environmental Conditions
Corrosion Resistant
Product UPC
78358503958
Weight
0.40 lb

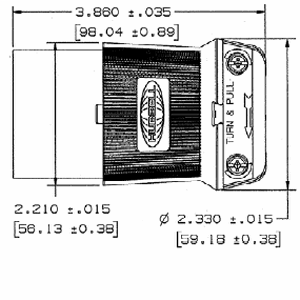

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel plated contacts and stainless steel screws provide maximum corrosion resistance.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Corrosion Resistant
