Hubbell HBL3433C 30 Amp 120/208 VAC 3-Phase 4-Pole 4-Wire Non-NEMA Black and White Nylon Locking Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3433C | Codale Part # 329662
$485.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Connector Body, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Black and White.

Technical Information

Amperage
30 Amp
Applications
For Heavy Duty Applications
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Current
30 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Nylon
Mounting Type
Cord
Number of Conductors
4-Wire Non-Grounding
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees F
Type
Insulgrip
Voltage
120/208 Volt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585039893
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503989
Weight
0.40 lb

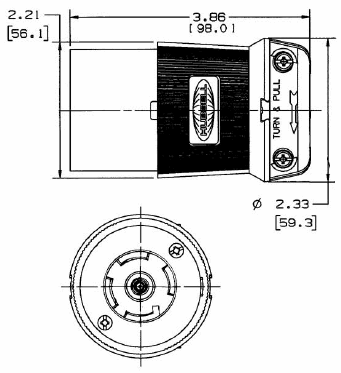

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Standard Product
