Hubbell HBL3523C 10/20 Amp 600/250 VAC 4-Pole 5-Wire Non-NEMA Black and White Nylon Locking Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3523C | Codale Part # 329665
$352.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V DC/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
10 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Connection Type
Pressure Screw Terminal
Current
10 Amp
Grounding
Grounding
Material
Plastic
Mounting Type
Cord
Number of Conductors
5-Wire Grounding
Number of Poles
4-4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C
Type
Standard, Straight
Voltage
250/600 Volt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039923
Color
Black/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503992
Weight
0.45 lb

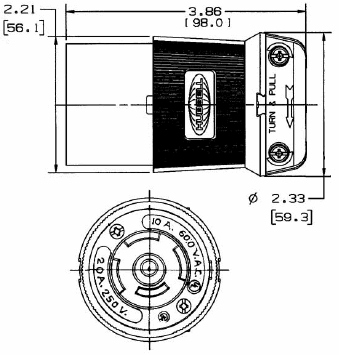

Dimensions

Height
3.86 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
