Hubbell HBL2162GY 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Gray Decorator Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2162GY | Codale Part # 329680
$35.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy duty, high leverage diagonal cutter
Base Material
PBT
Conductor Size
12-10 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
2000 V
Face Material
Nylon
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Style Line Decorator
Tc Connection
Back & Side Wired
Type
Standard
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585060460
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, UL 94V-2 Flammability Rating
Product Series
Heavy Duty
Product UPC
78358506046
Weight
0.2 lb

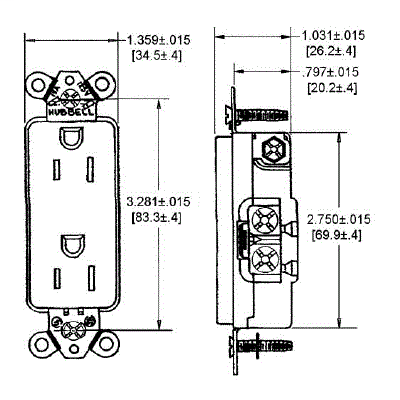

Dimensions

Height
1.03 Inch
Length
3.28 Inch
Width
1.36 in

Certifications and Compliance

Country of Origin
USA
Features
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
  • Standard, Self Grounding
