Hubbell HBL2162OW 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Office White Decorator Straight Blade Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2162OW | Codale Part # 329682
$35.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial /Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Office White, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Style Line Decorator
Tc Connection
Back & Side Wired
Type
Traditional, Standard, Heavy Duty
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 horse power

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585060507
Color
Office White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty
Product UPC
78358506050
Weight
0.2 lb

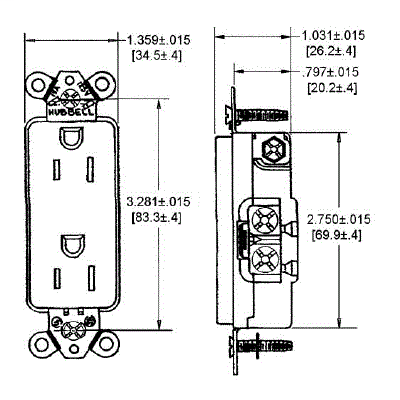

Dimensions

Height
1.03 Inch
Length
3.28 Inch
Width
1.36 in

Certifications and Compliance

Country of Origin
USA
Features
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
  • Standard, Self Grounding
