Hubbell HBL25W47 15A 125V Twist-Lock ELASTOGRIP Watertight Yellow Elastomer Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL25W47 | Codale Part # 329712
$127.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Elastogrip®, Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Yellow, Water/Dust-Tight Housing.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Current
15 Amp
Grade
Industrial
Material
Composite
Mounting Type
Cord, Surface
NEMA
L6-15R
Number of Conductors
2-Wire Non-Grounding
Number of Poles
2 Pole
Number of Wires
2 Wire Non-Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Heavy Duty
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Elastogrip®

General Product Info

12-Digit UPC
783585235912
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358523591
Weight
0.35 lb

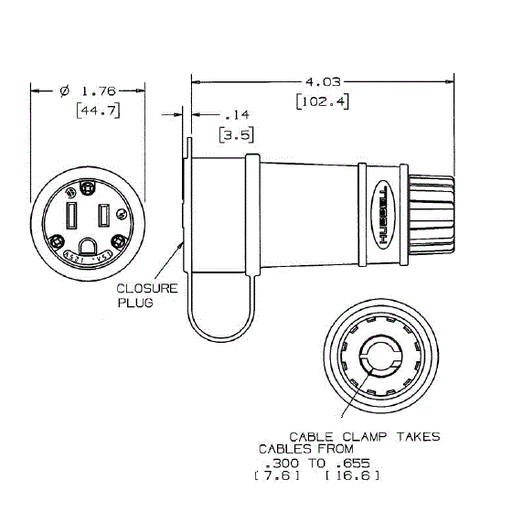

Dimensions

Height
4.03 Inch
Length
1.76 Inch
Width
1.76 in

Certifications and Compliance

Country of Origin
USA
Features
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
  • Standard Product
