Hubbell HBL3777 Locking Flanged INLT, 50A 250VDC/600VAC, 2P3W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL3777 | Codale Part # 329725
$606.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V, 600V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior, Metallic

Technical Information

Amperage
50 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
6 AWG
Current
50 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminals
Type
Locking, Industrial Grade
Voltage
250 Volt
Wattage
30000 Watt
Wire Count
3
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585236490
Color
Metallic
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523649
Weight
0.85 lb

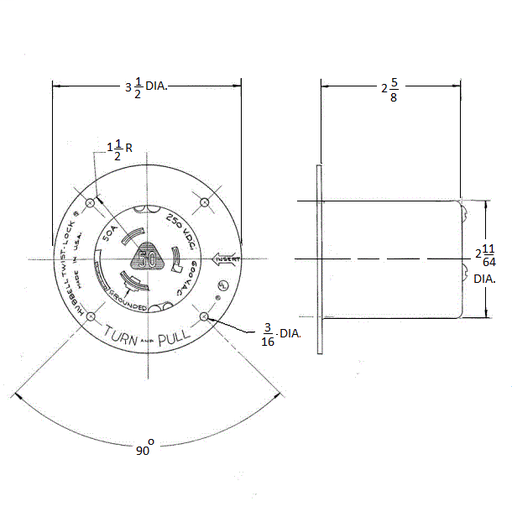

Dimensions

Height
2.62 Inch
Length
2.17 Inch
Width
3.50 in

Certifications and Compliance

Country of Origin
USA
Features
  • Metallic flanged casing provides maximum strength and protection
  • Thermoset interior provides superior heat resistance
  • Standard Product
