Hubbell HBL4723VY 15 Amp 125 Volt NEMA L5-15P Yellow Nylon Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4723VY | Codale Part # 329748
$40.59/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
15 Amp
Applications
For Extra Heavy Duty Industrial Applications
Conductor Size
18-12 AWG
Cord Size
0.22 - 0.66 in
Cord Type
Portable
Current
15 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Surface, Cord

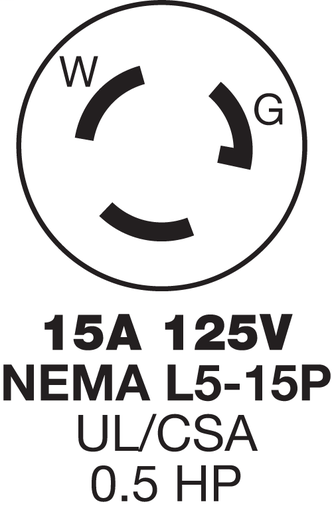

NEMA
L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C

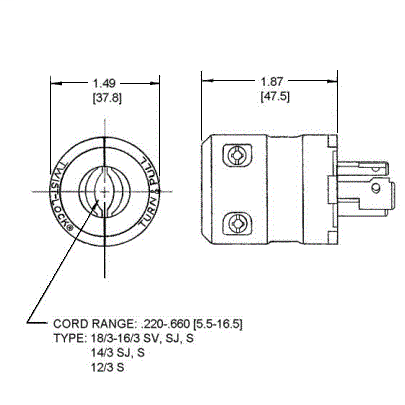

Size
1.49 in x 1.49 in x 1.87 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585236803
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability
Product UPC
78358523680
Weight
0.15 lb

Dimensions

Height
1.87 Inch
Length
1.49 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
USA
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
