Hubbell HBL7464-V 15A 125V Midget Twist-Lock VALISE Black Nylon Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7464V | Codale Part # 329775
$60.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Midget Twist-Lock®, Valise®, Female Connector Body, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML- 1R, Screw Terminal, Black, Polarized.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Connection Type
Pressure Screw
Current
15 Amp
Material
Composite
NEMA
ML-1R
Number of Conductors
2
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Size
Midget Locking
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Female, Midget Locking
Voltage
125 Volt
Wire Count
2
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585237251
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523725
Weight
0.05 lb

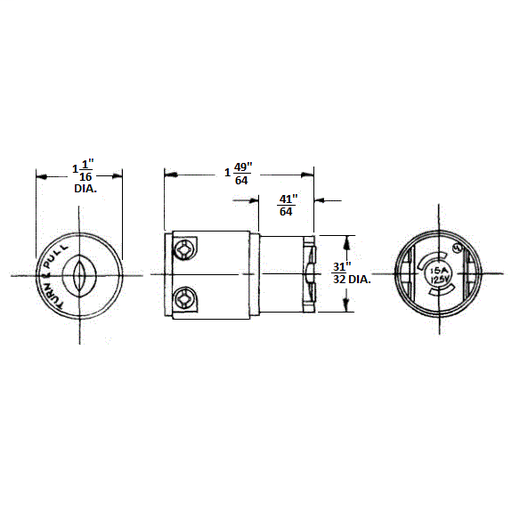

Dimensions

Height
1.77 Inch
Length
1.06 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Features
  • Fully insulated, abuse resistant nylon housing
  • Insulation displacement terminals reduce wiring time
  • Insulation displacement terminal
  • Standard Product
