Hubbell HBL7466 Locking Flanged-INLET, MIDGET, 15A 125V, ML-1P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7466 | Codale Part # 329779
$79.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML-1P, Screw Terminal, Stainless Steel Flange, Non-Polarized.

Technical Information

Amperage
15 Amp
Applications
Heavy duty, high leverage diagonal cutter
Base Material
Phenolic
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon

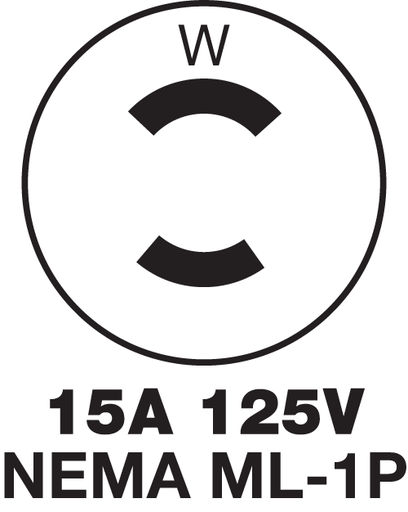

NEMA
ML-1P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
2,2
Operating Temperature
-40 degrees C
Size
Midget Locking
Standard
CSA,E2186,UL
Tc Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C
Type
Standard, Single
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
2
Wire Size
18-14

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Inlets

General Product Info

12-Digit UPC
783585237312
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523731
Weight
0.05 lb

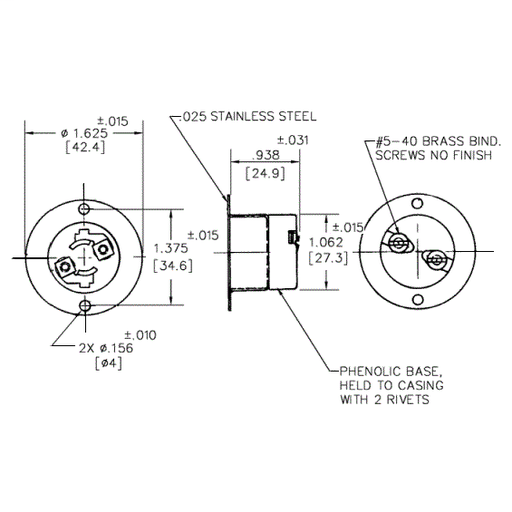

Dimensions

Height
0.94 Inch
Length
1.63 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • Stainless Steel mounting flange
  • High heat resistant phenolic base
  • Non-Polarized
