Hubbell HBL7484 15A 125/250V Midget Twist-Lock Black Nylon Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7484 | Codale Part # 329782
$96.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Midget Twist-Lock®, Industrial, Female Straight Connector, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3R, Screw Terminal, Black.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Connection Type
Pressure Screw Terminal
Current
15 Amp
Material
Composite

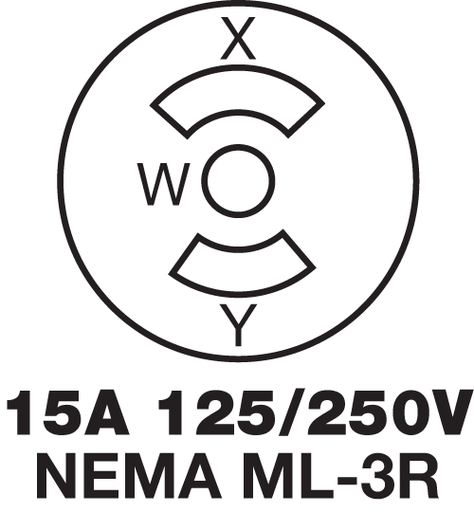

NEMA
ML-3R
Number of Conductors
3-Wire Non-Grounding
Number of Poles
3-3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Midget Locking
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without impact, -25 degrees C with Impact
Type
Standard, Insulated, Midget, 3-Pole
Voltage
125/250 Volt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237381
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523738
Weight
0.05 lb

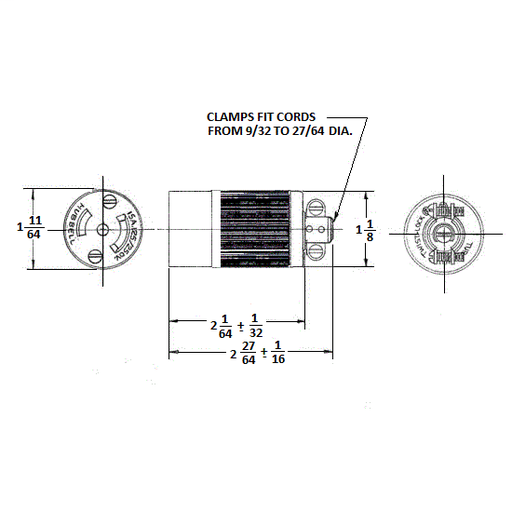

Dimensions

Height
2.42 Inch
Length
1.17 Inch
Width
1.17 in

Certifications and Compliance

Country of Origin
USA
Features
  • Abuse resistant nylon housing
  • Phenolic body for high heat resistance
  • Angled body design for low profile in tight spaces
  • Standard Product
