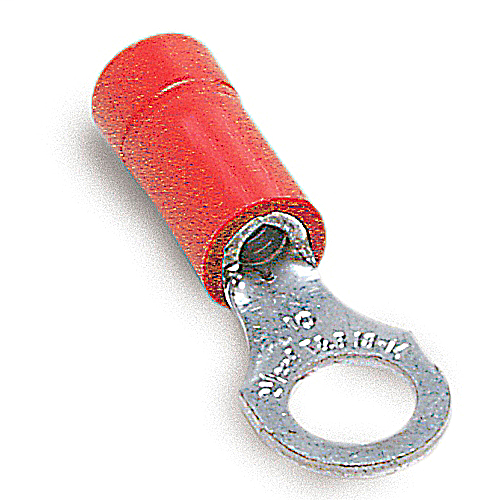

Product image for Thomas & Betts 18RA-38 22 to 16 AWG 3/8 Inch Stud Red Electrotinned Copper Vinyl Insulated Ring Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts 18RA-38 22 to 16 AWG 3/8 Inch Stud Red Electrotinned Copper Vinyl Insulated Ring Terminal

Manufacturer: ABB Thomas & Betts | Catalog # 18RA-38 | Codale Part # 3298109
$162.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

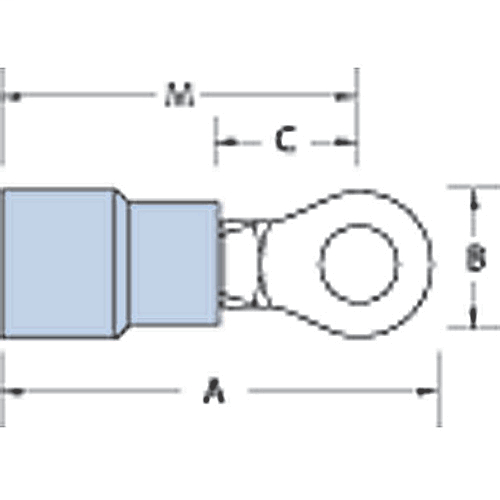

Vinyl-Insulated Ring Terminal, Length 1.24 Inches, Width .25 Inches, Maximum Insulation .150, Bolt Hole 3/8 Inch, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Vinyl Insulated Ring Terminal
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800981
Color
Red
Finish
Electro Tin Plated
Product UPC
78621080098
Weight
0.0157 lb

Dimensions

Height
8 Inch
Thickness
.03 in
Width
10.1 in
Certifications
  • CSA
  • UL
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
