Hubbell HBL7596N 15 Amp 125 VAC 2-Pole 3-Wire NEMA ML-2R Black Nylon Flanged Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7596N | Codale Part # 329815
$69.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

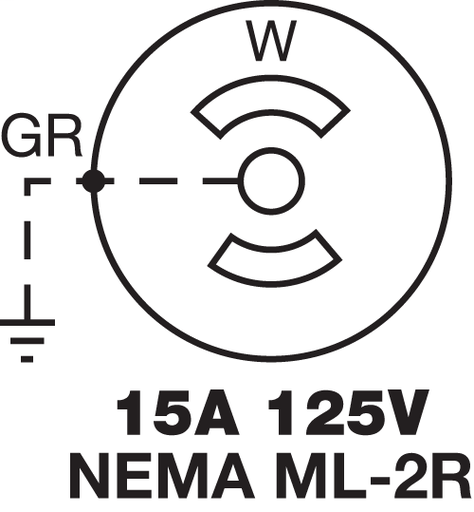

Locking Devices, Midget Twist-Lock®, Industrial, Flanged Receptacle, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML- 2R, Screw Terminal, Black Nylon Flange.

Technical Information

Amperage
15 Amp
Applications
Heavy duty, high leverage diagonal cutter
Base Material
Nylon
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
ML-2R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Midget Locking Devices
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Screw, 6 Terminals
Type
Single, Standard, Insulgrip
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237824
Color
Black,Orange,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523782
Weight
0.05 lb

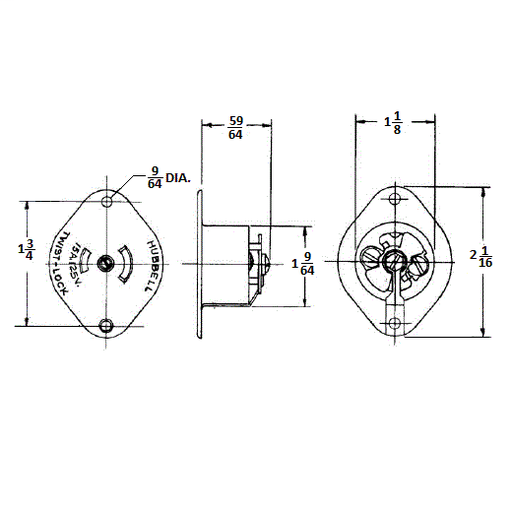

Dimensions

Height
0.92 Inch
Length
2.06 Inch
Width
1.62 in

Certifications and Compliance

Country of Origin
USA
Features
  • Fully Insulated nylon casing with integral flange
  • Black color blends in with equipment
  • Standard
