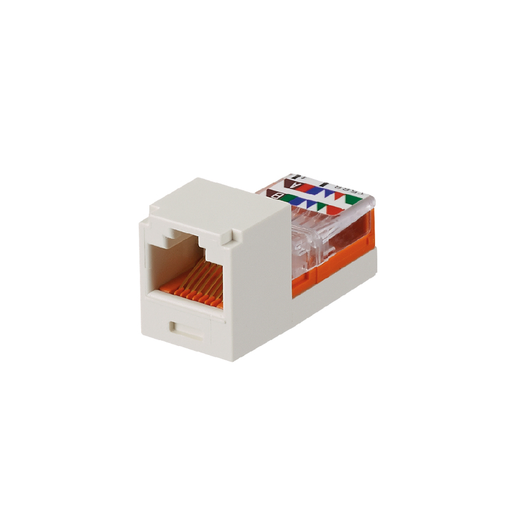

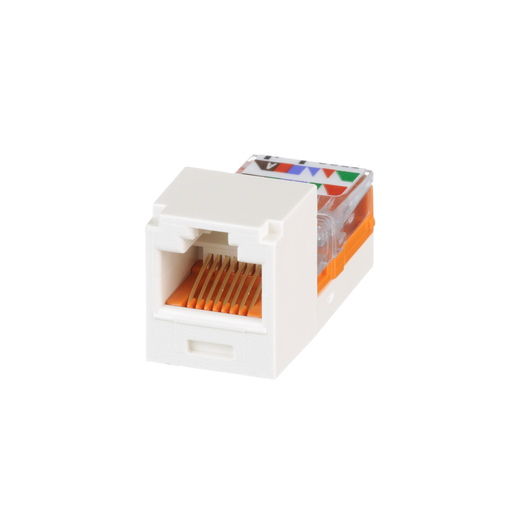

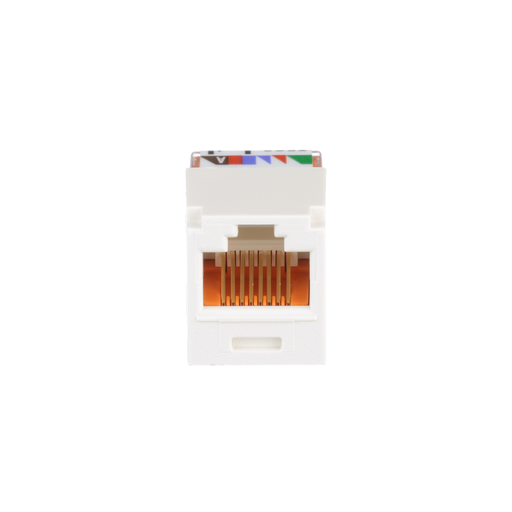

Product image for Panduit CJ588IWY 8-Position 8-Wire White Category 5E Unshielded Twisted Pair Jack Module
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit CJ588IWY 8-Position 8-Wire White Category 5E Unshielded Twisted Pair Jack Module

Manufacturer: PANDUIT | Catalog # CJ588IWY | Codale Part # 3298417
$19.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is off white.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 5e
Material
ABS Plastic
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
8-Wire, Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983034918
Color
Off-White
Product UPC
07498303491
Weight
0.0100 lb

Dimensions

Depth
34.8 mm
Height
0.72 Inch
Overall Length
1.37 in
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets all Applicable ANSI/TIA-968-A Requirements, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, Meets IEC 60603-7, UL 1863 Approved, RoHS Compliant
