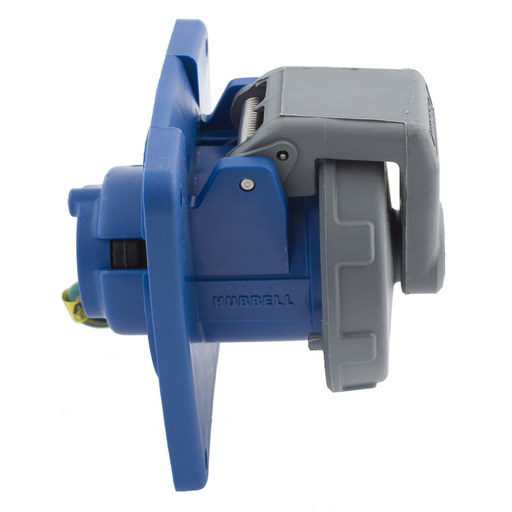

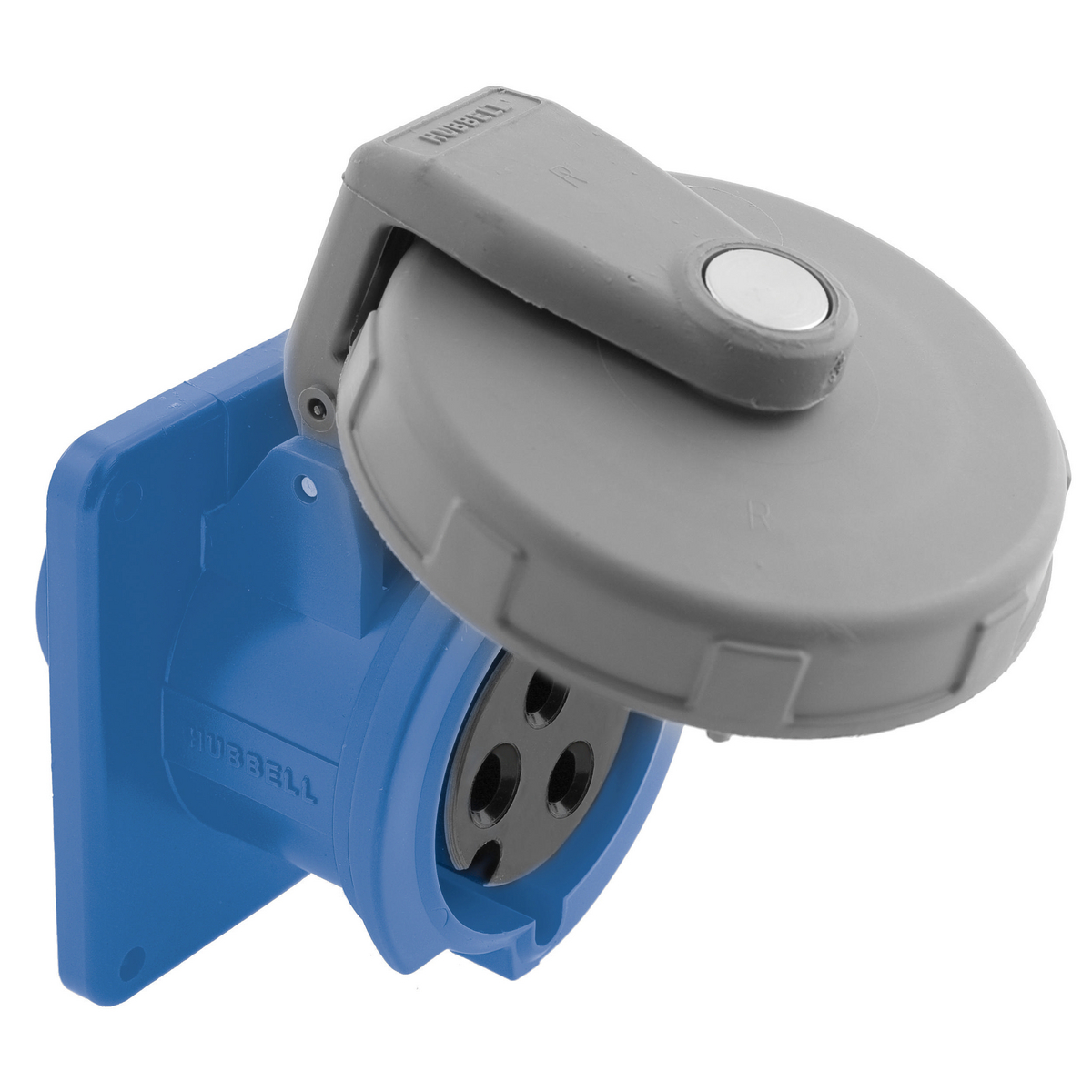

Product image for Hubbell HBL316R6W PS, IEC, Receptacle, 2P3W, 16A 200-240V, w/T
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL316R6W PS, IEC, Receptacle, 2P3W, 16A 200-240V, w/T

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL316R6W | Codale Part # 329856
$170.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 16A 220-240V, 2-Pole 3- Wire Grounding, Terminal Screws, Blue, Watertight

Technical Information

Amperage
16 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
14-10 AWG
Current
16 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Type
Watertight
Voltage
220-240 Volt
Wattage
3840 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403250
Color
Blue
Product Series
HBL Heavy Duty
Product UPC
78358540325
Weight
0.9 lb

Dimensions

Height
4.06 Inch
Length
4.43 Inch
Width
4.370 in

Certifications and Compliance

Country of Origin
USA
Features
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification
  • Watertight
