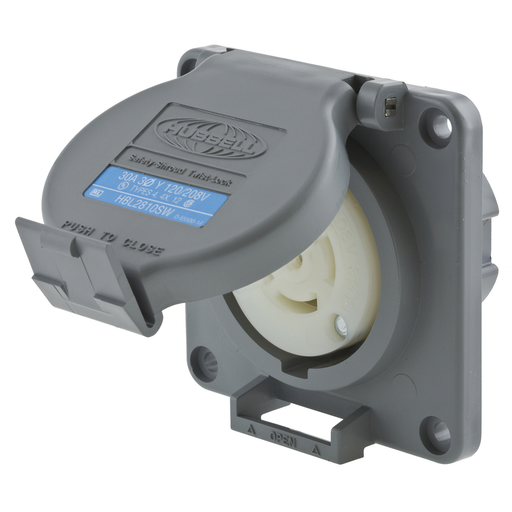

Hubbell HBL2810SW 30 Amp 120/208 VAC 4-Pole 5-Wire NEMA L21-30R Gray Watertight Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2810SW | Codale Part # 3298735
$285.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-30R, Screw Terminal, PBT housing and flange, Gray.

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L21-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Tc Connection
Screw Terminal
Type
Heavy Duty, Shrouded
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585232065
Color
Gray and White
Environmental Conditions
Watertight
Product UPC
78358523206
Weight
0.65 lb

Dimensions

Height
2.91 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL type 4X environmental seal while in use and when closed
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction
